螺牙规格 ：: 公制牙Ｍ、德制牙ＰＧ、英制牙Ｇ及美制牙NPT

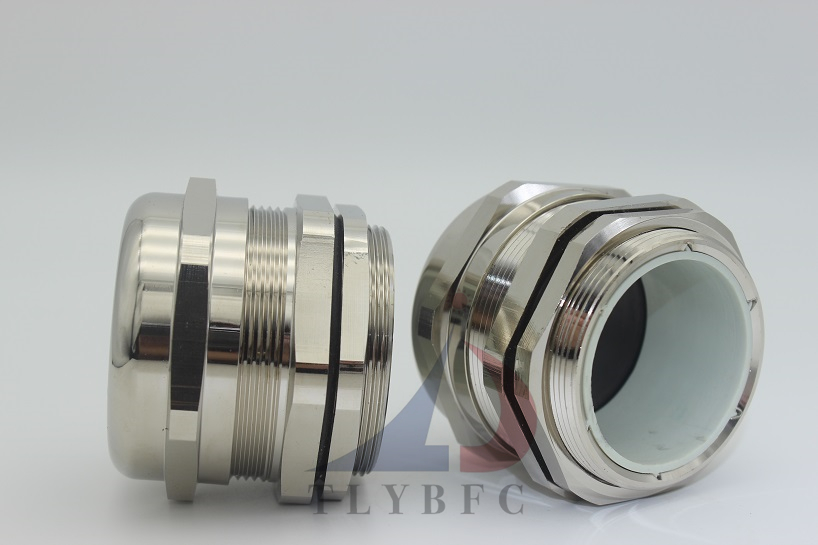

產品說明 ：（黄铜或不锈钢304）材质精制而成，具有独特的隔爆功能，特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-10Bar
工作温度 ：-40℃~＋100℃短时可达＋120℃
产品材質 ：A.C.F 部份以优质防爆黄铜製成，E 部份以 UL 認可之尼龍 PA66 製成 ( 防火等級 UL 94V-2 )B 及 D 部份採用EPDM耐候橡膠製成。
安装方法 ：铜镀镍防水接头出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹。接入进出口为内螺纹的电动设备上。
产品颜色 ：金属色，接受定制耐高温,阻燃V0级,耐酸碱等,欢迎致电咨询。
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
|
M6*1
|
TLYBFZ-EX-M6A-03
|
2--3
|
6
|
5
|
9
|
100
|
|
|
M8*1
|
TLYBFZ-EX-M8A-05
|
3--5
|
8
|
5.5
|
11
|
100
|
|
|
M10*1.5
|
TLYBFZ-EX-M10A-06
|
3--6
|
10
|
5.5
|
12
|
100
|
|
|
M12*1.5
|
TLYBFZ-EX-M12AS-06
|
3--6
|
12
|
8
|
14/14
|
50
|
|
公
|
TLYBFZ-EX-M12A-08
|
4--8
|
12
|
8
|
17/17
|
50
|
|
TLYBFZ-EX-M12A-05
|
3--5
|
12
|
8
|
17/17
|
50
|
|
|
M16*1.5
|
TLYBFZ-EX-M16AS-08
|
4--8
|
16
|
9
|
18/18
|
50
|
|
|
TLYBFZ-EX-M16A-10
|
6--10
|
16
|
9
|
22/22
|
50
|
|
|
TLYBFZ-EX-M16A-06
|
4--7
|
16
|
9
|
22/22
|
50
|
|
制
|
M18*1.5
|
TLYBFZ-EX-M18A-10
|
6--10
|
18
|
9
|
22/22
|
50
|
|
TLYBFZ-EX-M18A-06
|
4--7
|
18
|
9
|
22/22
|
50
|
|
|
M20*1.5
|
TLYBFZ-EX-M20AS-12
|
6--12
|
20
|
10
|
24/24
|
50
|
|
|
TLYBFZ-EX-M20AS-08
|
4--8
|
20
|
10
|
24/24
|
50
|
|
|
TLYBFZ-EX-M20A-14
|
7--14
|
20
|
10
|
26/26
|
50
|
|
MG
|
TLYBFZ-EX-M20A-10
|
7--11
|
20
|
10
|
26/26
|
50
|
|
M22*1.5
|
TLYBFZ-EX-M22A-14
|
7--14
|
22
|
10
|
26/26
|
50
|
|
TLYBFZ-EX-M22A-10
|
7--11
|
22
|
10
|
26/26
|
50
|
|
M25*1.5
|
TLYBFZ-EX-M25A-18
|
13--18
|
25
|
12
|
32/32
|
50
|
|
|
TLYBFZ-EX-M25A-16
|
12--16
|
25
|
12
|
32/32
|
50
|
|
|
M32*1.5
|
TLYBFZ-EX-M32A-25
|
18--25
|
32
|
13
|
41/41
|
20
|
|
|
TLYBFZ-EX-M32A-22
|
16--22
|
32
|
13
|
41/41
|
20
|
|
牙
|
M40*1.5
|
TLYBFZ-EX-M40A-30
|
24--30
|
40
|
15
|
50/50
|
10
|
|
TLYBFZ-EX-M40A-25
|
21--25
|
40
|
15
|
50/50
|
10
|
|
|
M50*1.5
|
TLYBFZ-EX-M50A-39
|
31--41
|
50
|
15
|
60/60
|
10
|
|
|
TLYBFZ-EX-M50A-32
|
26--32
|
50
|
15
|
60/60
|
10
|
|
|
M63*1.5
|
TLYBFZ-EX-M63A-49
|
44--51
|
63
|
15
|
73/73
|
10
|
|
|
TLYBFZ-EX-M63A-46
|
40--46
|
63
|
15
|
73/73
|
10
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
|
PG 7
|
TLYBFZ-EX-PG7A-05
|
3--5.3
|
12.5
|
8
|
17 / 17
|
20
|
|
德
|
TLYBFZ-EX-PG7A-08
|
4.5--8
|
12.5
|
8
|
17 / 17
|
20
|
|
TLYBFZ-EX-PG7AS-06
|
3--6
|
12.5
|
8
|
14 / 14
|
20
|
|
|
PG 9
|
TLYBFZ-EX-PG9A-05
|
3--5.3
|
15.2
|
8
|
18 / 17
|
20
|
|
|
TLYBFZ-EX-PG9A-08
|
4.5--8
|
15.2
|
8
|
18 / 17
|
20
|
|
|
PG 11
|
TLYBFZ-EX-PG11A-06
|
4--7
|
18.6
|
9
|
22 / 22
|
10
|
|
制
|
TLYBFZ-EX-PG11A-10
|
6--10
|
18.6
|
9
|
22 / 22
|
10
|
|
PG 13.5
|
TLYBFZ-EX-PG13.5A-08
|
5--9
|
20.4
|
9.5
|
24 / 24
|
10
|
|
|
TLYBFZ-EX-PG13.5A-12
|
7--12
|
20.4
|
9.5
|
24 / 24
|
10
|
|
|
PG 16
|
TLYBFZ-EX-PG16A-10
|
7--11
|
22.5
|
9.5
|
26 / 26
|
10
|
|
|
TLYBFZ-EX-PG16A-14
|
9--12.5
|
22.5
|
9.5
|
26 / 26
|
10
|
|
PG
|
PG 21
|
TLYBFZ-EX-PG21A-16
|
12--16
|
28.3
|
12
|
32 / 32
|
10
|
|
TLYBFZ-EX-PG21A-18
|
14--18
|
28.3
|
12
|
32 / 32
|
10
|
|
|
PG 29
|
TLYBFZ-EX-PG29A-22
|
16--22
|
37
|
12.5
|
41 / 41
|
10
|
|
|
TLYBFZ-EX-PG29A-25
|
18--25
|
37
|
12.5
|
41 / 41
|
10
|
|
|
PG36
|
TLYBFZ-EX-PG36A-26
|
20.0-26.0
|
47
|
14
|
57/52
|
10
|
|
牙
|
TLYBFZ-EX-PG36A-30
|
24.0-31.0
|
47
|
14
|
57/52
|
10
|
|
PG42
|
TLYBFZ-EX-PG42A-32
|
25.0-32.0
|
54
|
15
|
64/62
|
10
|
|
|
TLYBFZ-EX-PG42A-39
|
31.0-39.0
|
54
|
15
|
64/62
|
10
|
|
|
PG48
|
TLYBFZ-EX-PG48A-45
|
36.0-45.0
|
59.3
|
16
|
70/78
|
10
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
美
|
NPT1/4
|
TLYBFZ-EX-NPT1/4A-05
|
5.3 ~ 3
|
13.15
|
8
|
17 / 17
|
10
|
|
TLYBFZ-EX-NPT1/4A-08
|
7.8 ~ 4.5
|
13.15
|
8
|
17 / 17
|
10
|
|
|
NPT3/8
|
TLYBFZ-EX-NPT3/8A-06
|
7~4
|
17.05
|
8
|
22
|
50
|
|
制
|
TLYBFZ-EX-NPT3/8A-10
|
10~6
|
17.05
|
8
|
22
|
50
|
|
NPT1/2
|
TLYBFZ-EX-NPT1/2A-08
|
8~5.5
|
21.22
|
10
|
26
|
50
|
|
|
TLYBFZ-EX-NPT1/2A-12
|
12~8.5
|
21.22
|
10
|
26
|
50
|
|
NPT
|
TLYBFZ-EX-NPT1/2A-14
|
14~7.0
|
21.22
|
10
|
28
|
50
|
|
NPT3/4
|
TLYBFZ-EX-NPT3/4A-16
|
16~12
|
26.56
|
14
|
32
|
50
|
|
|
TLYBFZ-EX-NPT3/4A-18
|
18~14
|
26.56
|
14
|
32
|
50
|
|
牙
|
NPT1
|
TLYBFZ-EX-NPT 1A-22
|
22~16
|
33.22
|
15
|
41
|
20
|
|
TLYBFZ-EX-NPT 1A-25
|
25~18
|
33.22
|
15
|
41
|
20
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
英
|
G(PF) 1/4
|
TLYBFZ-EX-G1/4A-05
|
5.3 ~ 3
|
13.15
|
8
|
17 / 17
|
10
|
|
TLYBFZ-EX-G1/4A-08
|
7.8 ~ 4.5
|
13.15
|
8
|
17 / 17
|
10
|
|
|
G(PF) 3/8
|
TLYBFZ-EX-G3/8A-06
|
7 ~ 4
|
16.66
|
9
|
22 / 22
|
10
|
|
制
|
TLYBFZ-EX-G3/8A-10
|
10 ~ 6
|
16.66
|
9
|
22 / 22
|
10
|
|
G(PF) 1/2
|
TLYBFZ-EX-G1/2A-08
|
8 ~ 5.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
|
TLYBFZ-EX-G1/2A-12
|
12 ~ 8.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
G
|
TLYBFZ-EX-G1/2A-14
|
14 ~ 9.0
|
20.95
|
9.5
|
26 / 28
|
10
|
|
G(PF) 3/4
|
TLYBFZ-EX-G3/4A-16
|
16 ~ 12
|
26.44
|
12
|
32 / 32
|
10
|
|
|
TLYBFZ-EX-G3/4A-18
|
18 ~ 14
|
26.44
|
12
|
32 / 32
|
10
|
|
牙
|
G(PF) 1
|
TLYBFZ-EX-G1A-22
|
22 ~ 16
|
33.24
|
12.5
|
41 / 41
|
10
|
|
TLYBFZ-EX-G1A-25
|
25 ~ 18
|
33.24
|
12.5
|
41 / 41
|
10
|
