螺牙规格：德制牙（PG）,英制牙[G(PF)],美制牙（NPT）

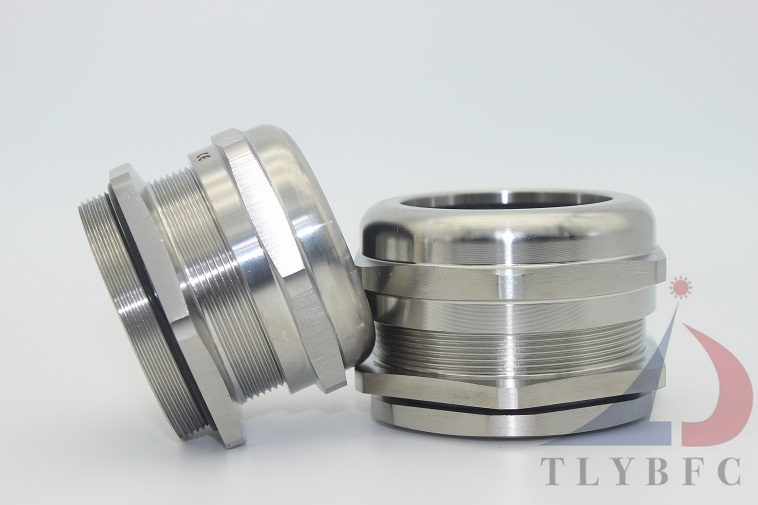

产品材质：外部金属部件为304不锈钢，内部尼龙加三元乙丙橡胶密封。
产品特性：接头已全数通过防爆检测，防爆等级为 EXd IIB GB,
防护等级：IP68，可持续水下工作而不漏水，性能良好。
本品拥有超强的耐腐蚀性，广泛用于海上作业，矿井设备，化工石油等环境恶劣场合。

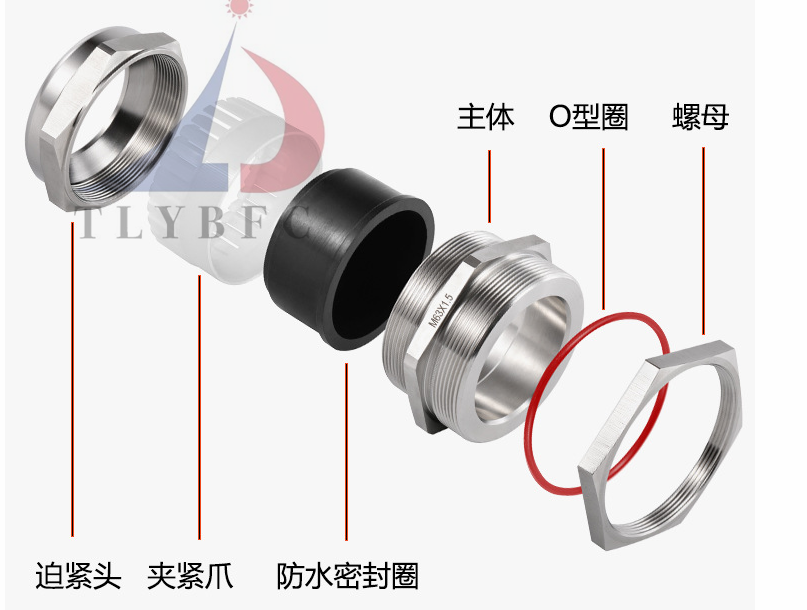

颜色种类：A、C、F部位为金属色。D为白色，B、E为黑色。
工作温度：静态：-40℃到100℃，短时间达120℃。动态：-20℃到80℃，短时间达100℃
订货说明：接受定制316，316L及其他材质，亦可更改螺纹长度，口径大小变动等。
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-M6-03-SS
|
M6X1.0
|
2-3
|
6
|
6
|
10/10
|
100
|
|
TLYBFC-FC-M8-04-SS
|
M8X1.0
|
2-4
|
8
|
6
|
12/12
|
100
|
|
TLYBFC-FC-M8H-05-SS
|
M8X1.0
|
3-5
|
8
|
6
|
12/12
|
100
|
|
TLYBFC-FC-M10-06-SS
|
M10X1.0
|
3-6.2
|
10
|
8
|
14/15
|
100
|
|
TLYBFC-FC-M12-08-SS
|
M12X1.5
|
3.5-8
|
12
|
8
|
17/17
|
50
|
|
TLYBFC-FC-M12H-05-SS
|
M12X1.5
|
3-5
|
12
|
8
|
17/17
|
50
|
|
TLYBFC-FC-M12S-06-SS
|
M12X1.5
|
3-6.2
|
12
|
8
|
14/14
|
50
|
|
TLYBFC-FC-M14-08-SS
|
M14X1.5
|
4-8
|
14
|
8
|
17/17
|
50
|
|
TLYBFC-FC-M14H-05-SS
|
M14X1.5
|
3-5
|
14
|
8
|
17/17
|
50
|
|
TLYBFC-FC-M16-10-SS
|
M16X1.5
|
5-10
|
16
|
9
|
20/22
|
50
|
|
TLYBFC-FC-M16H-06-SS
|
M16X1.5
|
3-6.2
|
16
|
9
|
20/22
|
50
|
|
TLYBFC-FC-M16S-08-SS
|
M16X1.5
|
4-8
|
16
|
9
|
20/18
|
50
|
|
TLYBFC-FC-M18-10-SS
|
M18X1.5
|
5-10
|
18
|
9
|
22/22
|
50
|
|
TLYBFC-FC-M18H-06-SS
|
M18X1.5
|
3-6.2
|
18
|
9
|
22/22
|
50
|
|
TLYBFC-FC-M20-14-SS
|
M20X1.5
|
8-14
|
20
|
10
|
24/26
|
50
|
|
TLYBFC-FC-M20H-10-SS
|
M20X1.5
|
6-10.5
|
20
|
10
|
24/26
|
50
|
|
TLYBFC-FC-M20S-12-SS
|
M20X1.5
|
7-12
|
20
|
10
|
24/26
|
50
|
|
TLYBFC-FC-M20F-08-SS
|
M20X1.5
|
4-8
|
20
|
10
|
24/26
|
50
|
|
TLYBFC-FC-M22-14-SS
|
M22X1.5
|
8-14
|
22
|
10
|
26/26
|
50
|
|
TLYBFC-FC-M22H-12-SS
|
M22X1.5
|
7-12
|
22
|
10
|
26/24
|
50
|
|
TLYBFC-FC-M22S-10-SS
|
M22X1.5
|
5-10
|
22
|
10
|
26/26
|
50
|
|
TLYBFC-FC-M24-14-SS
|
M24X1.5
|
8-14
|
24
|
12
|
28/26
|
50
|
|
TLYBFC-FC-M25-18-SS
|
M25X1.5
|
13-18
|
25
|
12
|
30/32
|
50
|
|
TLYBFC-FC-M25H-16-SS
|
M25X1.5
|
11-16
|
25
|
12
|
30/32
|
50
|
|
TLYBFC-FC-M25S-14-SS
|
M25X1.5
|
8-14
|
25
|
12
|
30/32
|
50
|
|
TLYBFC-FC-M25F-10-SS
|
M25X1.5
|
6-10.5
|
25
|
12
|
30/32
|
50
|
|
TLYBFC-FC-M27-18-SS
|
M27X2.0
|
13-18
|
27
|
12
|
32/32
|
50
|
|
TLYBFC-FC-M27H-16-SS
|
M27X2.0
|
11-16
|
27
|
12
|
32/32
|
50
|
|
TLYBFC-FC-M30-18-SS
|
M30X2.0
|
13-18
|
30
|
12
|
32/32
|
50
|
|
TLYBFC-FC-M30H-16-SS
|
M30X2.0
|
11-16
|
30
|
12
|
32/32
|
50
|
|
TLYBFC-FC-M32-25-SS
|
M32X1.5
|
18-25
|
30
|
12
|
38/40
|
25
|
|
TLYBFC-FC-M32H-22-SS
|
M32X1.5
|
16-22
|
32
|
12
|
38/40
|
25
|
|
TLYBFC-FC-M33-25-SS
|
M33X2.0
|
18-25
|
32
|
12
|
38/40
|
25
|
|
TLYBFC-FC-M36-25-SS
|
M36XX2.0
|
18-25
|
33
|
14
|
41/40
|
20
|
|
TLYBFC-FC-M36H-22-SS
|
M36X2.0
|
16-22
|
36
|
14
|
41/40
|
20
|
|
TLYBFC-FC-M40-30-SS
|
M40X1.5
|
24-30
|
40
|
15
|
46/50
|
10
|
|
TLYBFC-FC-M40H-25-SS
|
M40X1.5
|
18-25
|
40
|
15
|
46/50
|
10
|
|
TLYBFC-FC-M42-30-SS
|
M42X2.0
|
24-30
|
42
|
15
|
46/50
|
10
|
|
TLYBFC-FC-M48-30-SS
|
M48X2.0
|
24-30
|
48
|
15
|
52/50
|
10
|
|
TLYBFC-FC-M50-39-SS
|
M50X1.5
|
32-39
|
50
|
15
|
58/60
|
10
|
|
TLYBFC-FC-M50H-33-SS
|
M50X1.5
|
25-33
|
50
|
15
|
58/60
|
10
|
|
TLYBFC-FC-M56-39-SS
|
M56X2.0
|
32-39
|
56
|
15
|
58/60
|
5
|
|
TLYBFC-FC-M60-44-SS
|
M60X2.0
|
36-44
|
60
|
15
|
70/65
|
5
|
|
TLYBFC-FC-M63-54-SS
|
M63X1.5
|
46-54
|
63
|
15
|
70/75
|
5
|
|
TLYBFC-FC-M63H-49-SS
|
M63X1.5
|
38-49
|
63
|
15
|
70/75
|
5
|
|
TLYBFC-FC-M63S-44-SS
|
M63X1.5
|
36-44
|
63
|
15
|
70/65
|
5
|
|
TLYBFC-FC-M68-54-SS
|
M68X1.5
|
46-54
|
68
|
15
|
75/75
|
5
|
|
TLYBFC-FC-M72-66-SS
|
M72X1.5 (2)
|
56-66
|
72
|
16
|
78-78
|
4
|
|
TLYBFC-FC-M72H-54-SS
|
M72X1.5 (2)
|
48-54
|
72
|
16
|
82-82
|
4
|
|
TLYBFC-FC-M75-66-SS
|
M75X1.5 (2)
|
56-66
|
75
|
18
|
82-82
|
3
|
|
TLYBFC-FC-M75H-54-SS
|
M75X1.5 (2)
|
48-54
|
75
|
18
|
82-82
|
3
|
|
TLYBFC-FC-M76-66-SS
|
M76X1.5 (2)
|
56-66
|
76
|
18
|
82-82
|
3
|
|
TLYBFC-FC-M78-66-SS
|
M78X1.5 (2)
|
56-66
|
78
|
18
|
82-82
|
3
|
|
TLYBFC-FC-M88-77-SS
|
M88X1.5 (2)
|
70-77
|
88
|
18
|
98-98
|
2
|
|
TLYBFC-FC-M88H-68-SS
|
M88X1.5 (2)
|
56-68
|
88
|
18
|
98-98
|
2
|
|
TLYBFC-FC-M90-77-SS
|
M90X1.5 (2)
|
70-77
|
90
|
18
|
100-100
|
1
|
|
TLYBFC-FC-M90H-68-SS
|
M90X1.5 (2)
|
56-68
|
90
|
18
|
100-100
|
1
|
|
TLYBFC-FC-M100-85-SS
|
M100X1.5 (2)
|
78-85
|
100
|
20
|
110-110
|
1
|
|
TLYBFC-FC-M110-102-SS
|
M110X1.5 (2)
|
95-102
|
110
|
20
|
120-120
|
1
|
|
TLYBFC-FC-M120-112-SS
|
M120X1.5 (2)
|
105-112
|
120
|
20
|
135-135
|
1
|
|
TLYBFC-FC-M130-124-SS
|
M130X1.5 (2)
|
118-124
|
130
|
20
|
145/145
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-G1/4-08-SS
|
G1/4
|
3.5-8
|
13.15
|
8
|
18/17
|
50
|
|
TLYBFC-FC-G1/4-05-SS
|
G1/4
|
3-5
|
13.15
|
8
|
18/17
|
50
|
|
TLYBFC-FC-G3/8-10-SS
|
G3/8
|
5-10
|
16.66
|
9
|
20/22
|
50
|
|
TLYBFC-FC-G3/8-06-SS
|
G3/8
|
3-6.2
|
16.66
|
9
|
20/22
|
50
|
|
TLYBFC-FC-G1 /2-12-SS
|
G1/2
|
7-12
|
20.95
|
10
|
26/24
|
50
|
|
TLYBFC-FC-G1/2-08-SS
|
G1/2
|
4-8
|
20.95
|
10
|
26/24
|
50
|
|
TLYBFC-FC-G1/2-14-SS
|
G1/2
|
8-14
|
20.95
|
10
|
26/26
|
50
|
|
TLYBFC-FC-G1/2-10-SS
|
G1/2
|
5-10
|
20.95
|
10
|
26/26
|
50
|
|
TLYBFC-FC-G3/4-18-SS
|
G3/4
|
13-18
|
26.44
|
12
|
30/32
|
50
|
|
TLYBFC-FC-G3/4-16-SS
|
G3/4
|
11-16
|
26.44
|
12
|
30/32
|
50
|
|
TLYBFC-FC-G3/4-14-SS
|
G3/4
|
8-14
|
26.44
|
12
|
30/32
|
50
|
|
TLYBFC-FC-G3/4-10-SS
|
G3/4
|
6-10.5
|
26.44
|
12
|
30/32
|
50
|
|
TLYBFC-FC-G1**-25-SS
|
G1**
|
18-25
|
33.25
|
14
|
38/40
|
25
|
|
TLYBFC-FC-G1**-22-SS
|
G1**
|
16-22
|
33.25
|
14
|
38/40
|
25
|
|
TLYBFC-FC-G1 1/4-30-SS
|
G1 1/4
|
24-30
|
41.91
|
15
|
48/50
|
10
|
|
TLYBFC-FC-G1 1/4-25-SS
|
G1 1/4
|
18-25
|
41.91
|
15
|
48/50
|
10
|
|
TLYBFC-FC-G1 1/2-30-SS
|
G1 1/2
|
24-30
|
47.8
|
15
|
50/52
|
10
|
|
TLYBFC-FC-G1 1/2-40-SS
|
G1 1/2
|
32-40
|
47.8
|
15
|
50/52
|
10
|
|
TLYBFC-FC-G2**-44-SS
|
G2**
|
36-44
|
59.61
|
16
|
70/65
|
5
|
|
TLYBFC-FC-G2 1/2-66-SS
|
G2 1/2
|
54-66
|
75.18
|
16
|
90/85
|
4
|
|
TLYBFC-FC-G2 1/2-54-SS
|
G2 1/2
|
44-54
|
75.18
|
16
|
75/85
|
4
|
|
TLYBFC-FC-G3**-77-SS
|
G3
|
66-77
|
87.88
|
18
|
100/100
|
1
|
|
TLYBFC-FC-G4**-102-SS
|
G4**
|
95-102
|
113.03
|
20
|
122/122
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-NPT1/4-08-SS
|
NPT1/4
|
3.5-8
|
13.15
|
8
|
18/17
|
50
|
|
TLYBFC-FC-NPT1/4-05-SS
|
NPT1/4
|
3-5
|
13.15
|
8
|
18/17
|
50
|
|
TLYBFC-FC-NPT3/8-10-SS
|
NPT3/8
|
5-10
|
16.66
|
9
|
22/22
|
50
|
|
TLYBFC-FC-NPT3/8-06-SS
|
NPT3/8
|
3-6.2
|
16.66
|
9
|
22/22
|
50
|
|
TLYBFC-FC-NPT1 /2-12-SS
|
NPT1/2
|
7-12
|
20.95
|
10
|
24/24
|
50
|
|
TLYBFC-FC-NPT1/2-08-SS
|
NPT1/2
|
4-8
|
20.95
|
10
|
24/24
|
50
|
|
TLYBFC-FC-NPT1/2-14-SS
|
NPT1/2
|
8-14
|
20.95
|
10
|
26/26
|
50
|
|
TLYBFC-FC-NPT1/2-10-SS
|
NPT1/2
|
5-10
|
20.95
|
10
|
26/26
|
50
|
|
TLYBFC-FC-NPT3/4-18-SS
|
NPT3/4
|
13-18
|
26.44
|
12
|
32/32
|
50
|
|
TLYBFC-FC-NPT3/4-16-SS
|
NPT3/4
|
11-16
|
26.44
|
12
|
32/32
|
50
|
|
TLYBFC-FC-NPT3/4-14-SS
|
NPT3/4
|
8-14
|
26.44
|
12
|
32/32
|
50
|
|
TLYBFC-FC-NPT3/4-10-SS
|
NPT3/4
|
6-10.5
|
26.44
|
12
|
32/32
|
50
|
|
TLYBFC-FC-NPT1**-25-SS
|
NPT1**
|
18-25
|
33.25
|
14
|
40/40
|
25
|
|
TLYBFC-FC-NPT1**-22-SS
|
NPT1**
|
16-22
|
33.25
|
14
|
40/40
|
25
|
|
TLYBFC-FC-NPT1 1/4-30-SS
|
NPT1 1/4
|
24-30
|
41.91
|
15
|
50/50
|
10
|
|
TLYBFC-FC-NPT1 1/4-25-SS
|
NPT1 1/4
|
18-25
|
41.91
|
15
|
50/50
|
10
|
|
TLYBFC-FC-NPT1 1/2-40-SS
|
NPT1 1/2
|
32-40
|
47.8
|
15
|
50/52
|
10
|
|
TLYBFC-FC-NPT1 1/2-33-SS
|
NPT1 1/2
|
25-33
|
47.8
|
15
|
50/52
|
10
|
|
TLYBFC-FC-NPT2**-44-SS
|
NPT2**
|
36-44
|
59.61
|
16
|
70/65
|
5
|
|
TLYBFC-FC-NPT3**-77-SS
|
NPT3
|
66-77
|
87.88
|
18
|
100/100
|
1
|
|
TLYBFC-FC-NPT4**-102-SS
|
NPT4**
|
95-102
|
113.03
|
20
|
122/122
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-PG07-08-SS
|
PG07
|
3.5-8
|
12.5
|
8
|
17/18
|
50
|
|
TLYBFC-FC-PG07-05-SS
|
PG07
|
3-5
|
12.5
|
8
|
17/18
|
50
|
|
TLYBFC-FC-PG09-08-SS
|
PG09
|
3.5-8
|
15.2
|
8
|
18/18
|
50
|
|
TLYBFC-FC-PG09-05-SS
|
PG09
|
3-5
|
15.2
|
8
|
18/18
|
50
|
|
TLYBFC-FC-PG11-10-SS
|
PG11
|
5-10
|
18.6
|
9
|
22/22
|
50
|
|
TLYBFC-FC-PG11-06-SS
|
PG11
|
3-6.2
|
18.6
|
9
|
22/22
|
50
|
|
TLYBFC-FC-PG13.5-12-SS
|
PG13.5
|
7-12
|
20.4
|
10
|
24/24
|
50
|
|
TLYBFC-FC-PG13.5-08-SS
|
PG13.5
|
4-8
|
20.4
|
10
|
24/24
|
50
|
|
TLYBFC-FC-PG16-14-SS
|
PG16
|
8-14
|
22.5
|
10
|
26/26
|
50
|
|
TLYBFC-FC-PG16-10-SS
|
PG16
|
5-10
|
22.5
|
10
|
26/26
|
50
|
|
TLYBFC-FC-PG19-14-SS
|
PG19
|
8-14
|
23.9
|
10
|
28/26
|
50
|
|
TLYBFC-FC-PG21-18-SS
|
PG21
|
13-18
|
28.3
|
12
|
32/32
|
50
|
|
TLYBFC-FC-PG21-16-SS
|
PG21
|
11-16
|
28.3
|
12
|
32/32
|
50
|
|
TLYBFC-FC-PG25-18-SS
|
PG25
|
13-18
|
29.8
|
12
|
32/32
|
50
|
|
TLYBFC-FC-PG29-25-SS
|
PG29
|
18-25
|
37
|
13
|
42/40
|
20
|
|
TLYBFC-FC-PG29-22-SS
|
PG29
|
16-22
|
37
|
13
|
42/40
|
20
|
|
TLYBFC-FC-PG36-30-SS
|
PG36
|
24-30
|
47
|
14
|
52/50
|
10
|
|
TLYBFC-FC-PG36-25-SS
|
PG36
|
18-25
|
47
|
14
|
52/50
|
10
|
|
TLYBFC-FC-PG42-40-SS
|
PG42
|
32-40
|
54
|
14
|
60/60
|
10
|
|
TLYBFC-FC-PG42-33-SS
|
PG42
|
25-33
|
54
|
14
|
60/60
|
10
|
|
TLYBFC-FC-PG48-44-SS
|
PG48
|
36-44
|
59.3
|
15
|
70/65
|
5
|
|
TLYBFC-FC-PG63-54-SS
|
PG63
|
44-54
|
72
|
16
|
75/80
|
5
|
|
TLYBFC-FC-PG70-66-SS
|
PG70
|
54-66
|
80
|
18
|
90/90
|
4
|
