螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

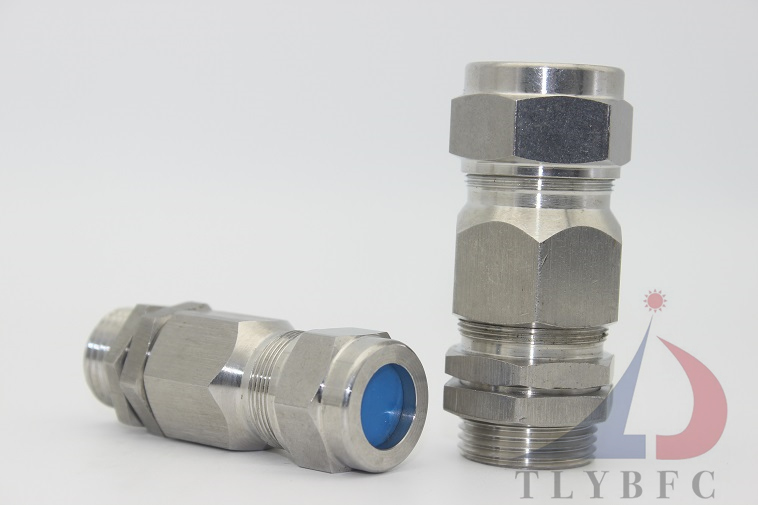

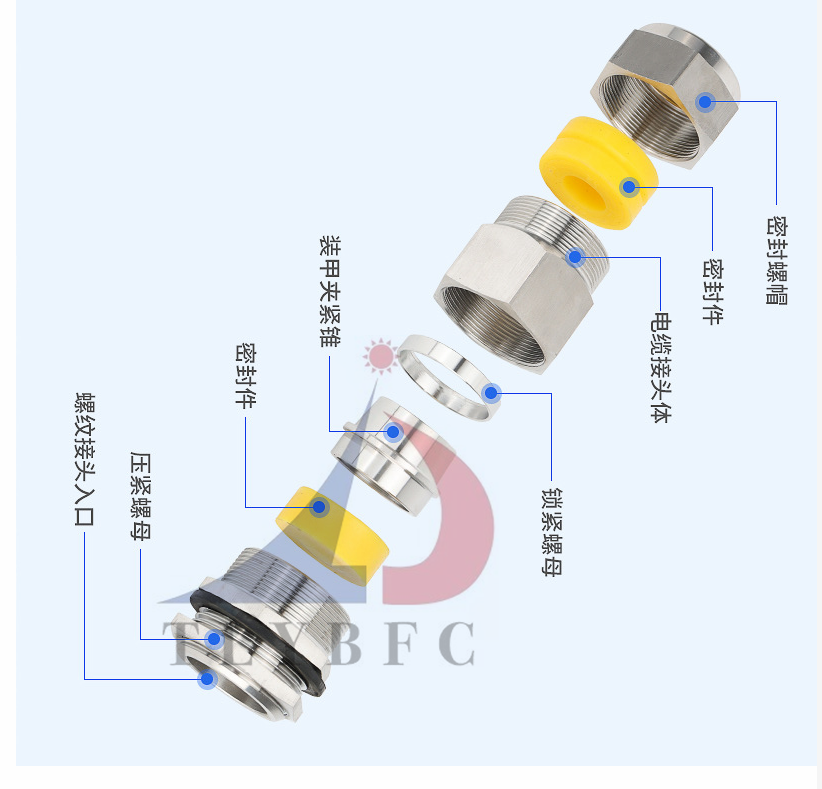

产品说明：采用304不锈钢原材料配合数控机床加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，适
合各类钢带，钢丝铠装电缆。电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防
护性能好，防爆性能等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar ，根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材质 ：不锈钢搭配硅胶制成。
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套
使用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，旋紧迫紧螺帽即可。
适用场所 ：铠装电缆接头是用来固定和保护铠装电缆的设备。不锈钢铠装电缆接头是用于固定铠装电缆一种接头，主要材质用不锈钢304或者是316制成。
不锈钢铠装电缆防水接头密封件我们采尼龙和硅胶制成，其防水的等级可达IP66，同时我们采用防爆装置防爆等级可以满足其材料和机构是按照防爆要求
进行设计和制造的。接头的使用环境1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
|
产品编码
|
螺纹规格 公制螺纹
|
螺纹规格 美制螺纹
|
螺纹规格 英制螺纹
|
出线电缆外径 A
|
出线电缆外径 B
|
螺纹长度
|
高度
|
包装数量
|
|
TLYBFC-SMF-EX-SS
|
M16X1.5
|
NPT3/8
|
G3/8
|
5-8
|
7-15
|
15
|
71
|
50
|
TLYBFC-SMF-EX-SS
|
20X1.5
|
NPT1/2
|
G1/2
|
5-10
|
8-15
|
15
|
71
|
25
|
TLYBFC-SMF-EX-SS
|
M25X1.5
|
NPT3/4
|
G3/4
|
8-15
|
11-20
|
15
|
72
|
20
|
TLYBFC-SMF-EX-SS
|
M32X1.5
|
NPT1
|
G1
|
11-20
|
14-27
|
17
|
77
|
20
|
TLYBFC-SMF-EX-SS
|
M40X1.5
|
NPT1 1/4
|
G1 1/4
|
14-27
|
19-33
|
19
|
86
|
20
|
TLYBFC-SMF-EX-SS
|
M50X1.5
|
NPT1 1/2
|
G1 1/2
|
16-31
|
22-40
|
19
|
89
|
15
|
TLYBFC-SMF-EX-SS
|
M63X1.5
|
NPT2
|
G2
|
29-43
|
29-50
|
20
|
97
|
10
|
TLYBFC-SMF-EX-SS
|
M75X1.5
|
NPT2 1/2
|
G2 1/2
|
38-55
|
35-63
|
21
|
103
|
5
|
TLYBFC-SMF-EX-SS
|
M85X1.5
|
NPT3-Y
|
G3-H
|
48-65
|
41-77
|
24
|
106
|
5
|
TLYBFC-SMF-EX-SS
|
M90X1.5
|
NPT3
|
G3
|
48-65
|
41-77
|
24
|
106
|
2
|
TLYBFC-SMF-EX-SS
|
M100X1.5
|
NPT4-Y
|
G4-H
|
50-80
|
55-90
|
26
|
116
|
1
|
TLYBFC-SMF-EX-SS
|
M110X1.5
|
NPT4
|
G4
|
48-90
|
61-104
|
26
|
116
|
1
|
|
不锈钢铠装防爆填料函-II型隔爆(公制牙)
|
|
螺牙规格
|
订货型号
|
电缆外径密封范围
|
螺纹长度
|
钢带厚度
|
网带厚度
|
大直径B
|
|
公制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
(mm)Max
|
（mm）
|
|
M20
|
TLYBFC-EXd-M20-14h
|
3.1～8.6
|
6.1～14.0
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-M20-16h
|
6～12
|
9.5～16
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
M25
|
TLYBFC-EXd-M25-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-M25-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
M32
|
TLYBFC-EXd-M32-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-M32-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
M40
|
TLYBFC-EXd-M40-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-M40-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
M50
|
TLYBFC-EXd-M50-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-M50-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
M63
|
TLYBFC-EXd-M63-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-M63-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
M75
|
TLYBFC-EXd-M75-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-M75-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
M100
|
TLYBFC-EXd-M100-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-M100-79h
|
59.1～67.9
|
60.4～79
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-M100-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
M125
|
TLYBFC-EXd-M125-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
不锈钢铠装防爆填料函-II型隔爆(英制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
G1/2
|
TLYBFC-EXd-G1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-G1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
G3/4
|
TLYBFC-EXd-G3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-G3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
G 1"
|
TLYBFC-EXd-G1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-G1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
G1 1/4
|
TLYBFC-EXd-G1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-G1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
G1 1/2
|
TLYBFC-EXd-G1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-G1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
G 2"
|
TLYBFC-EXd-G2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-G2-62h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
G2 1/2
|
TLYBFC-EXd-G2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-G2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
G 3"
|
TLYBFC-EXd-G3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-G3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-G3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
G 4"
|
TLYBFC-EXd-G4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
不锈钢铠装防爆填料函-II型隔爆(美制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
NPT1/2
|
TLYBFC-EXd-NPT1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-NPT1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
NPT3/4
|
TLYBFC-EXd-NPT3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-NPT3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
NPT 1"
|
TLYBFC-EXd-NPT1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-NPT1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
NPT1 1/4
|
TLYBFZ-EXd-NPT1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-NPT1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
NPT1 1/2
|
TLYBFC-EXd-NPT1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-NPT1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
NPT 2"
|
TLYBFC-EXd-NPT2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-NPT2-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
NPT2 1/2
|
TLYBFC-EXd-NPT2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-NPT2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
NPT 3"
|
TLYBFC-EXd-NPT3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-NPT3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-NPT3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
NPT 4"
|
TLYBFC-EXd-NPT4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
