螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

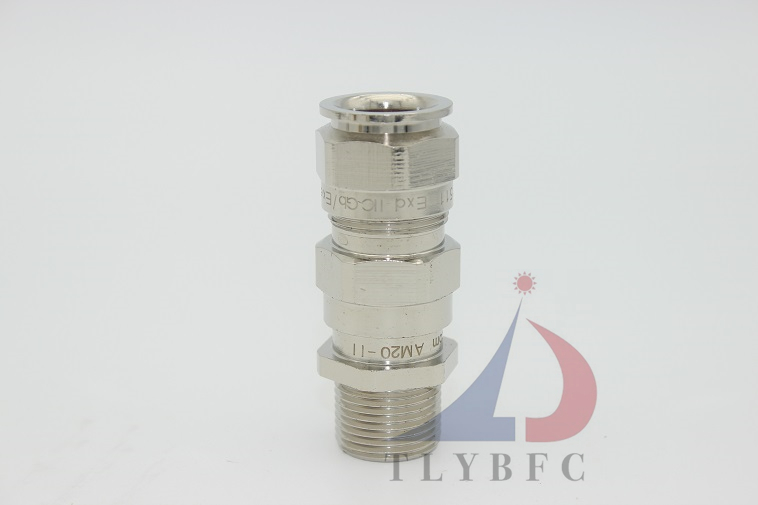

产品说明：采用黄铜或不锈钢304原材料配合数控机床加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，适合各类钢带，钢丝铠装电缆。电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防护性能好，防爆性能等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、油、油脂及一般溶剂，。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar ,根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材質 ：黄铜或不锈钢304搭配硅胶制成。
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套
使用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，最后旋紧迫紧螺帽即可。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
备注：接受非标、定制等,欢迎来电咨询!
|
产品型号
|
螺纹规格
|
卡电缆范围内径 C
|
卡电缆外径 D
|
螺纹长度
|
扳手尺寸 F
|
扳手尺寸 F
|
|
TLYBFC-NBK-M12-8
|
M12X1.5
|
4-8
|
6-12
|
15
|
19
|
19
|
|
TLYBFC-NBK-M16-9
|
M16X1.5
|
4-8.5
|
6-12
|
15
|
19
|
19
|
|
TLYBFC-NBK-M16-12
|
M16X1.5
|
6-12
|
8.5-16
|
15
|
24
|
24
|
|
TLYBFC-KNBK-M20-9
|
M20X1.5
|
4-8.5
|
6-12
|
15
|
19
|
24
|
|
TLYBFC-NBK-M20-12
|
M20X1.5
|
6-12
|
8.5-16
|
15
|
24
|
24
|
|
TLYBFC-NBK-M20-16
|
M20X1.5
|
8.5-15.5
|
12-21
|
15
|
30
|
30
|
|
TLYBFC-NBK-M25-12
|
M25X1.5
|
6-12
|
8.5-16
|
15
|
24
|
30
|
|
TLYBFC-NBK-M25-16
|
M25X1.5
|
8.5-16
|
12-21
|
15
|
30
|
30
|
|
TLYBFC-NBK-M25-21
|
M25X1.5
|
12-20.5
|
16-27.5
|
15
|
41
|
41
|
|
TLYBFC-NBK-M32-21
|
M32X1.5
|
12-21
|
16-27.5
|
15
|
41
|
41
|
|
TLYBFC-NBK-M32-28
|
M32X1.5
|
16-27.5
|
21-34
|
15
|
48
|
48
|
|
TLYBFC-NBK-M40-28
|
M40X1.5
|
16-27.5
|
21-34
|
15
|
48
|
48
|
|
TLYBFC-NBK-M40-34
|
M40X1.5
|
21-34
|
27-41
|
15
|
55
|
55
|
|
TLYBFC-NBK-M50-34
|
M50X1.5
|
21-34
|
27-41
|
16
|
55
|
55
|
|
TLYBFC-NBK-M50-41
|
M50X1.5
|
27-41
|
33-48
|
16
|
64
|
64
|
|
TLYBFC-NBK-M63-48
|
M63X1.5
|
33-48
|
40-56
|
17
|
72
|
72
|
|
TLYBFC-NBK-M63-56
|
M63X1.5
|
40-56
|
47-65
|
17
|
85
|
85
|
|
TLYBFC-NBK-M75-56
|
M75X1.5
|
40-56
|
47-65
|
18
|
85
|
85
|
|
TLYBFC-NBK-M75-65
|
M75X1.5
|
47-65
|
54-74
|
18
|
95
|
95
|
|
TLYBFC-NBK-M80-65
|
M80X1.5
|
47-65
|
54-74
|
20
|
95
|
95
|
|
TLYBFC-NBK-M80-73
|
M80X1.5
|
54-73
|
63-83
|
20
|
110
|
110
|
|
TLYBFC-NBK-M90-74
|
M90X1.5
|
54-74
|
63-83
|
22
|
110
|
110
|
|
TLYBFC-NBK-M90-82
|
M90X1.5
|
63-82
|
72-93
|
22
|
120
|
120
|
|
TLYBFC-NBK-M90-93
|
M90X1.5
|
72-93
|
85-107
|
22
|
135
|
120
|
|
产品型号
|
螺纹规格
|
卡电缆范围
|
螺纹长度
|
扳手尺寸 E
|
扳手尺寸 F
|
包装数量
|
|
TLYBFC-NBK-G1/4-8
|
G1/4
|
4-8
|
12
|
15
|
15
|
50
|
|
TLYBFC-NBK-G3/8-9
|
G3/8
|
4-8.5
|
12
|
15
|
19
|
50
|
|
TLYBFZ-NBK-G3/8-12
|
G3/8
|
6-12
|
12
|
19
|
19
|
50
|
|
TLYBFC-NBK-G1/2-9
|
G1/2
|
4-8.5
|
16
|
15
|
24
|
50
|
|
TLYBFC-NBK-G1/2-12
|
G1/2
|
6-12
|
16
|
19
|
24
|
50
|
|
TLYBFC-NBK-G1/2-16
|
G1/2
|
8.5-15.5
|
16
|
24
|
24
|
50
|
|
TLYBFC-NBK-G3/4-12
|
3/4
|
6-12
|
16
|
19
|
30
|
50
|
|
TLYBFC-NBK-G3/4-16
|
G3/4
|
8.5-16
|
16
|
24
|
30
|
25
|
|
TLYBFC-NBK-G3/4-21
|
G3/4
|
12-20.5
|
16
|
30
|
30
|
25
|
|
TLYBFC-NBK-G1**-21
|
G1**
|
12-21
|
20
|
30
|
36
|
20
|
|
TLYBFC-NBK-G1**-26
|
G1**
|
16-26
|
20
|
41
|
41
|
20
|
|
TLYBFC-NBK-G1 1/4-28
|
G1 1/4
|
16-27.5
|
20
|
41
|
44
|
15
|
|
TLYBFC-NBK-G1 1/4-34
|
G1 1/4
|
21-34
|
20
|
48
|
48
|
15
|
|
TLYBFC-NBK-G1 1/2-34
|
G1 1/2
|
21-34
|
20
|
48
|
55
|
10
|
|
TLYBFC-NBK-G1 1/2-41
|
G1 1/2
|
27-41
|
20
|
55
|
55
|
10
|
|
TLYBFC-NBK-G2**-48
|
G2**
|
33-48
|
20
|
64
|
67
|
5
|
|
TLYBFC-NBK-G2-53
|
G2**
|
40-53
|
20
|
72
|
72
|
5
|
|
产品型号
|
螺纹规格
|
卡电缆范围内径
|
卡电缆外径
|
螺纹长度
|
扳手尺寸 E
|
扳手尺寸 F
|
|
TLYBFC-NBK-NPT1/4-8
|
NPT1/4
|
4-8.5
|
6-12
|
16
|
19
|
19
|
|
TLYBFC-NBK-NPT3/8-9
|
NPT3/8
|
6-12
|
6-12
|
16
|
19
|
19
|
|
TLYBFC-NBK-NPT1/2-9
|
NPT1/2
|
4-8.5
|
6-12
|
16
|
19
|
24
|
|
TLYBFC-NBK-NPT1/2-12
|
NPT1/2
|
6-12
|
8.5-16
|
16
|
24
|
24
|
|
TLYBFC-NBK-NPT1/2-16
|
NPT1/2
|
8.5-15.5
|
12-21
|
16
|
30
|
30
|
|
TLYBFC-NBK-NPT3/4-12
|
NPT3/4
|
6-12
|
8.5-16
|
16
|
24
|
30
|
|
TLYBFC-NBK-NPT3/4-16
|
NPT3/4
|
8.5-16
|
12-21
|
16
|
30
|
30
|
|
TLYBFC-NBK-NPT3/4-21
|
NPT3/4
|
12-20.5
|
16-27.5
|
16
|
41
|
41
|
|
TLYBFC-NBK-NPT1**-21
|
NPT1**
|
12-21
|
16-27.5
|
20
|
41
|
41
|
|
TLYBFC-NBK-NPT1**-26
|
NPT1**
|
16-26
|
21-34
|
20
|
48
|
48
|
|
TLYBFC-NBK-NPT1 1/4-28
|
NPT1 1/4
|
16-27.5
|
21-34
|
20
|
48
|
48
|
|
TLYBFC-NBK-NPT1 1/4-34
|
NPT1 1/4
|
21-34
|
27-41
|
20
|
55
|
55
|
|
TLYBFC-NBK-NPT1 1/2-34
|
NPT1 1/2
|
21-34
|
27-41
|
20
|
55
|
55
|
|
TLYBFC-NBK-NPT1 1/2-41
|
NPT1 1/2
|
27-41
|
33-48
|
20
|
64
|
64
|
|
TLYBFC-NBK-NPT2**-48
|
NPT2**
|
33-48
|
40-56
|
20
|
72
|
72
|
|
TLYBFC-NBK-NPT2**-53
|
NPT2**
|
47-53
|
47-65
|
20
|
85
|
85
|
|
TLYBFC-NBK-NPT2**-56
|
NPT2 1/2
|
40-56
|
47-65
|
28
|
85
|
85
|
|
TLYBFC-NBK-NPT-63
|
NPT2 1/2
|
47-62.5
|
54-74
|
28
|
95
|
95
|
|
TLYBFC-NBK-NPT3**-74
|
NPT3**
|
54-74
|
63-83
|
30
|
110
|
110
|
|
TLYBFC-NBK-NPT3**-78
|
NPT3 1/2
|
63-78
|
72-93
|
30
|
120
|
120
|
|
产品型号
|
螺纹规格
|
卡电缆范围 内径
|
螺纹长度
|
扳手尺寸 E
|
扳手尺寸 F
|
包装数量
|
|
TLYBFC-NBK-PG7-9
|
PG7
|
4-8.5
|
15
|
15
|
15
|
50
|
|
TLYBFC-NBK-PG9-9
|
PG9
|
4-8.5
|
15
|
15
|
19
|
50
|
|
TLYBFC-NBK-PG9-12
|
PG9
|
6-11
|
15
|
19
|
19
|
50
|
|
TLYBFC-NBK-PG11-9
|
PG11
|
4-8.5
|
15
|
15
|
22
|
50
|
|
TLYBFC-NBK-PG11-12
|
PG11
|
6-12
|
15
|
19
|
22
|
50
|
|
TLYBFC-NBK-PG13.5-9
|
PG13.5
|
4-8.5
|
15
|
15
|
24
|
50
|
|
TLYBFC-NBK-PG13.5-12
|
PG13.5
|
6-12
|
15
|
19
|
24
|
50
|
|
TLYBFC-NBK-PG13.5-16
|
PG13.5
|
8.5-16
|
15
|
24
|
24
|
25
|
|
TLYBFC-NBK-PG16-12
|
PG16
|
6-12
|
15
|
19
|
27
|
25
|
|
TLYBFC-NBK-PG16-16
|
PG16
|
8.5-16
|
15
|
24
|
27
|
20
|
|
TLYBFC-NBK-PG16-19
|
PG16
|
12-19
|
15
|
30
|
30
|
20
|
|
TLYBFC-NBK-PG21-16
|
PG21
|
8.5-16
|
15
|
24
|
32
|
15
|
|
TLYBFC-NBK-PG21-21
|
PG21
|
12-21
|
15
|
30
|
32
|
15
|
|
TLYBFC-NBK-PG29-28
|
PG29
|
16-27.5
|
15
|
41
|
41
|
10
|
|
TLYBFC-NBK-PG29-33
|
PG29
|
21-33
|
15
|
48
|
48
|
10
|
|
TLYBFC-NBK-PG36-34
|
PG36
|
21-34
|
15
|
48
|
51
|
5
|
|
TLYBFC-NBK-PG36-41
|
PG36
|
27-41
|
15
|
55
|
55
|
5
|
|
TLYBFC-NBK-PG42-41
|
PG42
|
27-41
|
16
|
55
|
60
|
5
|
|
TLYBFC-NBK-PG42-48
|
PG42
|
33-48
|
16
|
64
|
64
|
5
|
