符合标准：GB3836.1 、 GB3836.2
材质：不锈钢、黄铜、黄铜镀镍（化学镀）、铝、碳钢
密封材料：特制热塑性橡胶
防护等级：标准产品IP66，根据要求可达到IP67 /IP68，安装圆型圈可满足防洪保护。
持续工作温度：-40° to +100°或 -70° to +200°
适用电缆类型：编织铠装、钢带铠装（STA）
密封方法：位移式密封+夹紧式密封
密封区域：电缆内护层、外护层

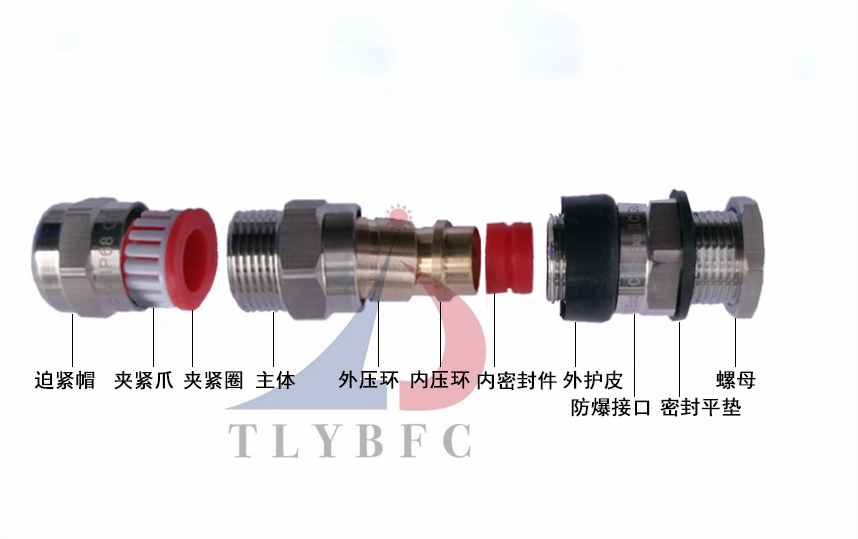

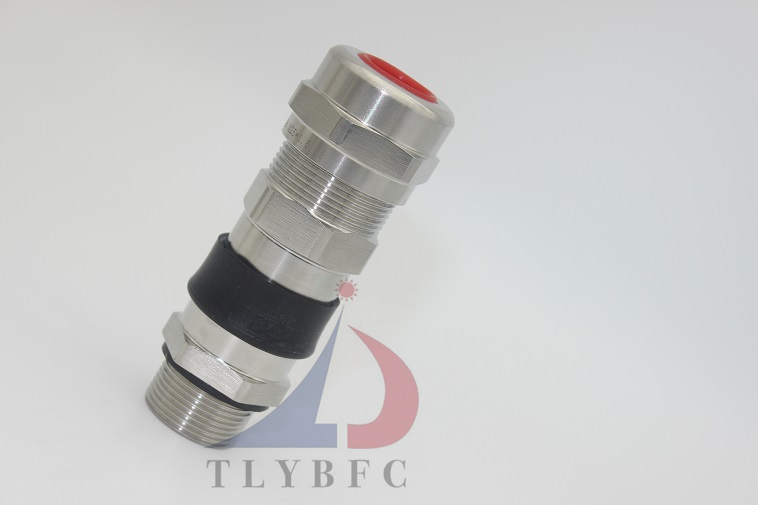

在1区、2区、21区和22区区域用于编织铠装、钢带铠装电缆的密封接头，在电缆内护层上
提供密封和防水防尘密封，该电缆密封接头通过电缆铠装端终提供机械支撑力和铠装接地的连续性。同时可拆分的
铠装锥的设置使得电缆密封接头可进行间接安装，并且电缆可以从设备断开。本款产品还安装圆型护套圈可满足防
洪保护。
可选配件 ：根据需要可以选择护套，胶泥，接地片等等。
备注：接受非标、定制等,欢迎来电咨询!
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-M16
|
M16X1.5
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-M16
|
M16X1.5
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-M20
|
M20X1.5
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-M20
|
M20X1.5
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-M20
|
M20X1.5
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-M25
|
M25X1.5
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-M25
|
M25X1.5
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-M32
|
M32X1.5
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-M32
|
M32X1.5
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-M40
|
M40X1.5
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-M40
|
M40X1.5
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-M50
|
M50X1.5
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-M50
|
M50X1.5
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-M63
|
M63X1.5
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-M63
|
M63X1.5
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-M78
|
M78X2.0
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-M78
|
M78X2.0
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-M88
|
M88X2.0
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-M88
|
M88X2.0
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-M100
|
M100X2.0
|
78-89
|
65-75
|
110
|
18
|
115
|
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-G1/2
|
G1/2
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-G1/2
|
G1/2
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-G1/2
|
G1/2
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-G1/2
|
G1/2
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-G1/2
|
G1/2
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-G3/4
|
G3/4
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-G3/4
|
G3/4
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-G1**
|
G1**
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-G1**
|
G1**
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-G1 1/4
|
G1 1/4
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-G1 1/4
|
G1 1/4
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-G1 1/2
|
G1 1/2
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-G1 1 /2
|
G1 1/2
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-G2**
|
G2**
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-G2**
|
G2**
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-G2 1/2
|
G2 1/2
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-G2 1/2
|
G2 1/2
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-G3**
|
G3**
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-G3**
|
G3**
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-G3 1/2
|
G3 1/2
|
78-89
|
65-75
|
110
|
18
|
115
|
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-NPT1/2
|
NPT1/2
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-NPT1/2
|
NPT1/2
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-NPT1/2
|
NPT1/2
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-NPT1/2
|
NPT1/2
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-NPT1/2
|
NPT1/2
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-NPT3/4
|
GNPT/4
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-NPT3/4
|
NPT3/4
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-NPT1**
|
NPT1**
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-NPT1**
|
NPT1**
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-NPT1 1/4
|
NPT1 1/4
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-NPT1 1/4
|
NPT1 1/4
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-NPT1 1/2
|
NPT1 1/2
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-NNPT 1 /2
|
NPT1 1/2
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-NPT2**
|
NPT2**
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-NPT2**
|
NPT2**
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-NPT2 1/2
|
NPT2 1/2
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-NPT2 1/2
|
NPT2 1/2
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-NPT3**
|
NPT3**
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-NPT3**
|
NPT3**
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-NPT3 1/2
|
NPT3 1/2
|
78-89
|
65-75
|
110
|
18
|
115
|
