螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙

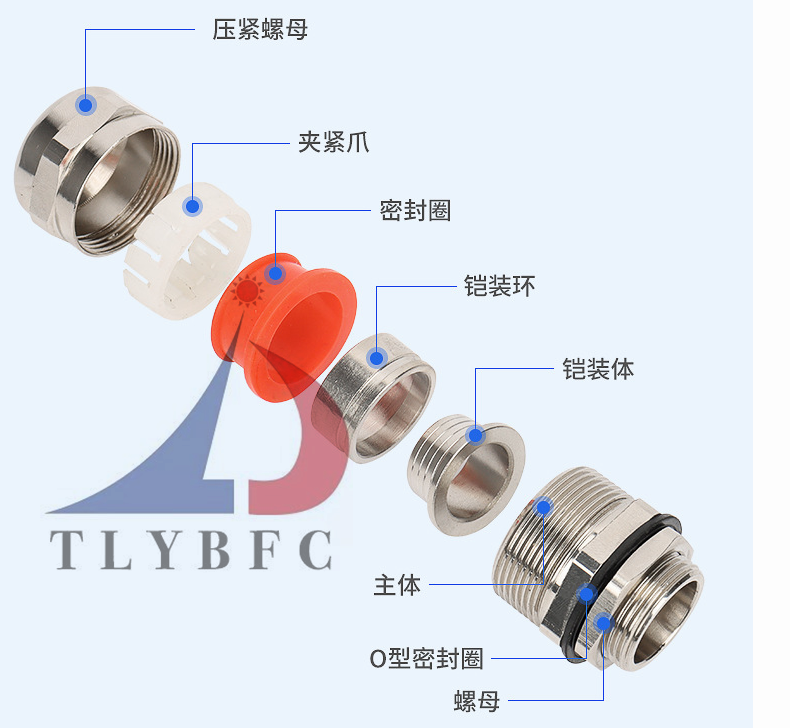

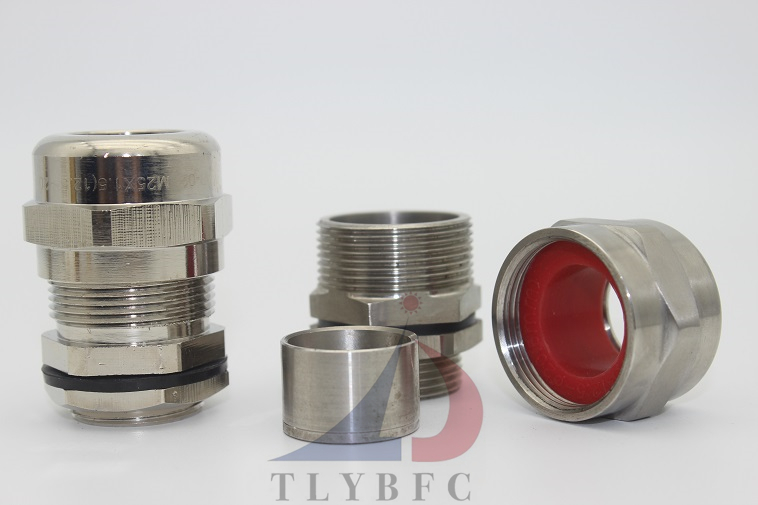

产品说明：采用黄铜或不锈钢304原材料配合数控机床加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，适合各类钢带，钢丝铠装电缆。
电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防护性能好，防爆性能等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、
油、油脂及一般溶剂，。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar ，根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材質 ：黄铜或不锈钢304搭配硅胶制成
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套
使用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，旋紧迫紧螺帽即可。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
备注：接受非标、定制等,欢迎来电咨询!
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-HXKZ010-M16
|
M16X1.5
|
5-10
|
9
|
80
|
|
TLYBFC-HXKZ10-M20
|
M20X1.5
|
5-10
|
10
|
50
|
|
TLYBFC-HXKZ14-M20
|
M20X1.5
|
8-14
|
10
|
50
|
|
TLYBFC-HXKZ16-M20
|
M20X1.5
|
10-16
|
10
|
50
|
|
TLYBFC-HXKZ18-M20
|
M20X1.5
|
13-18
|
10
|
50
|
|
TLYBFC-HXKZ21-M20
|
M20X1.5
|
15-21
|
10
|
50
|
|
TLYBFC-HXKZ14-M25
|
M25X1.5
|
8-14
|
12
|
50
|
|
TLYBFC-HXKZ16-M25
|
M25X1.5
|
10-16
|
12
|
25
|
|
TLYBFC-HXKZ18-M25
|
M25X1.5
|
13-18
|
12
|
25
|
|
TLYBFC-HXKZ21-M25
|
M25X1.5
|
15-21
|
12
|
25
|
|
TLYBFC-HXKZ24-M25
|
M25X1.5
|
17-24
|
12
|
25
|
|
TLYBFC-HXKZ25-M32
|
M32X1.5
|
18-25
|
12
|
20
|
|
TLYBFC-HXKZ28-M32
|
M32X1.5
|
20-28
|
12
|
20
|
|
TLYBFC-HXKZ32-M32
|
M32X1.5
|
23-32
|
12
|
20
|
|
TLYBFC-HXKZ35-M40
|
M40X1.5
|
26-35
|
15
|
15
|
|
TLYBFC-HXKZ38-M40
|
M40X1.5
|
31-38
|
15
|
15
|
|
TLYBFC-HXKZ41-M50
|
M50X1.5
|
34-41
|
15
|
10
|
|
TLYBFC-HXKZ44-M50
|
M50X1.5
|
37-44
|
15
|
10
|
TLYBFC-HXKZ50-M63
|
M63X.15
|
40-50
|
18
|
5
|
TLYBFC-HXKZ55-M63
|
M63X1.5
|
43-55
|
18
|
5
|
TLYBFC-HXKZ63-M75
|
M75X2.0
|
50-63
|
18
|
5
|
TLYBFC-HXKZ68-M75
|
M75X2.0
|
54-68
|
18
|
1
|
TLYBFC-HXKZ90-M90
|
M90X2.0
|
65-78
|
18
|
1
|
TLYBFC-HXKZ98-M100
|
M100X2.0
|
78-98
|
18
|
1
|
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-HXKZ10-NPT3/8
|
NPT3/8
|
5-10
|
9
|
80
|
|
TLYBFC-HXKZ10-NPT1/2
|
NPT1/2
|
5-10
|
10
|
50
|
|
TLYBFC-HXKZ14-NPT1/2
|
NPT1/2
|
8-14
|
10
|
50
|
|
TLYBFC-HXKZ16-NPT1/2
|
NPT1/2
|
10-16
|
10
|
50
|
|
TLYBFC-HXKZ18-NPT1/2
|
NPT1/2
|
13-18
|
10
|
50
|
|
TLYBFC-HXKZ21-NPT1/2
|
NPT1/2
|
15-21
|
10
|
50
|
|
TLYBFC-HXKZ14-NPT3/4
|
NPT3/4
|
8-14
|
12
|
25
|
|
TLYBFC-HXKZ16-NPT3/4
|
NPT3/4
|
10-16
|
12
|
25
|
|
TLYBFC-HXKZ18-NPT3/4
|
NPT3/4
|
13-18
|
12
|
25
|
|
TLYBFC-HXKZ21-NPT3/4
|
NPT3/4
|
15-21
|
12
|
25
|
|
TLYBFC-HXKZ24-NPT3/4
|
NPT3/4
|
17-24
|
12
|
25
|
|
TLYBFC-HXKZ25-NPT1
|
NPT1
|
18-25
|
12
|
20
|
|
TLYBFC-HXKZ28-NPT1
|
NPT1
|
20-28
|
12
|
20
|
|
TLYBFC-HXKZ32-NPT1
|
NPT1
|
23-32
|
12
|
20
|
|
TLYBFC-HXKZ35-NPT1 1/4
|
NPT1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-HXKZ38-NPT1 1/4
|
NPT1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-HXKZ41-NPT1 1/2
|
NPT1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-HXKZ44-NPT1 1/2
|
NPT1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-HXKZ50-NPT2
|
NPT2
|
40-50
|
18
|
5
|
|
TLYBFC-HXKZ55-NPT2
|
NPT2
|
43-55
|
18
|
5
|
|
TLYBFC-HXKZ63-NPT2 1/2
|
NPT2 1/2
|
50-63
|
18
|
2
|
TLYBFC-HXKZ68-NPT2 1/2
|
NPT2 1/2
|
54-68
|
18
|
2
|
TLYBFC-HXKZ78-NPT3
|
NPT3
|
65-78
|
18
|
1
|
TLYBFC-HXKZ98-NPT4
|
NPT4
|
78-98
|
18
|
1
|
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-HXKZ10-G3/8
|
G3/8
|
5-10
|
9
|
80
|
|
TLYBFC-HXKZ10-G1/2
|
G1/2
|
5-10
|
10
|
50
|
|
TLYBFC-HXKZ14-G1/2
|
G1/2
|
8-14
|
10
|
50
|
|
TLYBFC-HXKZ16-G1/2
|
G1/2
|
10-16
|
10
|
50
|
|
TLYBFC-HXKZ18-G1/2
|
G1/2
|
13-18
|
10
|
50
|
|
TLYBFC-HXKZ21-G1/2
|
G1/2
|
15-21
|
10
|
50
|
|
TLYBFC-HXKZ14-G3/4
|
G3/4
|
8-14
|
12
|
25
|
|
TLYBFC-HXKZ16-G3/4
|
G3/4
|
10-16
|
12
|
25
|
|
TLYBFC-HXKZ18-G3/4
|
G3/4
|
13-18
|
12
|
25
|
|
TLYBFC-HXKZ21-G3/4
|
G3/4
|
15-21
|
12
|
25
|
|
TLYBFC-HXKZ24-G3/4
|
G3/4
|
17-24
|
12
|
25
|
|
TLYBFC-HXKZ25-G1
|
G1
|
18-25
|
12
|
20
|
|
TLYBFC-HXKZ28-G1
|
G1
|
20-28
|
12
|
20
|
|
TLYBFC-HXKZ32-G1
|
G1
|
23-32
|
12
|
20
|
|
TLYBFC-HXKZ35-G1 1/4
|
G1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-HXKZ38-G1 1/4
|
G1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-HXKZ41-G1 1/2
|
G1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-HXKZ44-NPT1 1/2
|
G1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-HXKZ50-NPT2
|
G2
|
40-50
|
18
|
5
|
|
TLYBFC-HXKZ55-NPT2
|
G2
|
43-55
|
18
|
5
|
|
TLYBFC-HXKZ63-NPT2 1/2
|
G2 1/2
|
50-63
|
18
|
2
|
TLYBFC-HXKZ68-NPT2 1/2
|
G2 1/2
|
54-68
|
18
|
2
|
TLYBFC-HXKZ78-NPT3
|
G3
|
65-78
|
18
|
1
|
TLYBFC-HXKZ98-NPT4
|
G4
|
78-98
|
18
|
1
|
