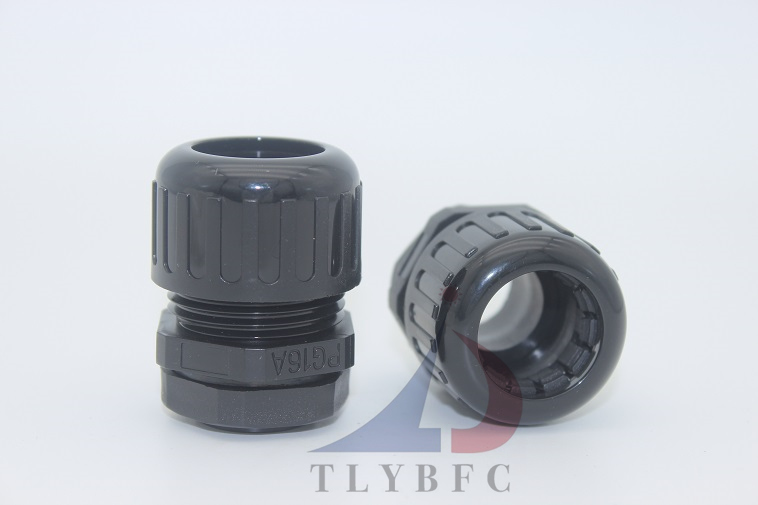

螺牙规格: 公制牙(Metric)、PG牙、G牙、NPT牙。
产品材质: A.C.F部分采用UL认可之无卤素（Halogen-Free）尼龙PA66(防火等级UL94V-2)制成，B.D部分采用三元乙丙(EPDM)耐候橡胶制成。
防护等级: IP68
工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
颜色种类: 黑色、灰色，其它颜色可定做.
|
适配软管
|
产品型号
|
螺牙规格
|
螺纹外径 (C1)
|
螺纹长度( C2)
|
幅体小通径(F1)
|
包装
|
|
AD10.0
|
TLYBFC-KLL-M12A-10.0
|
M12 * 1.5
|
12
|
8.5
|
8
|
50
|
|
TLYBFC-KLL-M16A-10.0-ST
|
M16 * 1.5
|
16
|
10
|
8
|
50
|
|
AD13.0
|
TLYBFC-KLL-M16A-13.0-ST
|
M16 * 1.5
|
16
|
10
|
10.7
|
50
|
|
TLYBFC-KLL-M16A-13.0
|
M16 * 1.5
|
16
|
15
|
11.1
|
50
|
|
TLYBFC-KLL-M18A-13.0-ST
|
M18 * 1.5
|
18
|
10
|
10.7
|
50
|
|
TLYBFC-KLL-M20A-13.0-ST
|
M20 * 1.5
|
20
|
10
|
10.4
|
50
|
|
AD15.8
|
TLYBFC-KLL-M16A-15.8-ST
|
M16 *1.5
|
16
|
10
|
11.1
|
50
|
|
TLYBFC-KLL-M16A-15.8
|
M16 * 1.5
|
16
|
15
|
11
|
50
|
|
TLYBFC-KLL-M18A-15.8-ST
|
M18 * 1.5
|
18
|
10
|
11
|
50
|
|
TLYBFC-KLL-M18A-15.8
|
M18 * 1.5
|
18
|
15
|
11
|
50
|
|
TLYBFC-KLL-M20A-15.8-ST
|
M20 * 1.5
|
20
|
10
|
14.5
|
50
|
|
TLYBFC-KLL-M20A-15.8
|
M20 * 1.5
|
20
|
15
|
14.5
|
50
|
|
TLYBFC-KLL-M25A-15.8-ST
|
M25 * 1.5
|
25
|
12
|
14.6
|
50
|
|
AD18.5
|
TLYBFC-KLL-M16A-18.5-ST
|
M16 * 1.5
|
16
|
10
|
11.1
|
50
|
|
TLYBFC-KLL-M16A-18.5
|
M16 * 1.5
|
16
|
15
|
11
|
50
|
|
TLYBFC-KLL-M20A-18.5-ST
|
M20 * 1.5
|
20
|
10
|
14.5
|
50
|
|
TLYBFC-KLL-M20A-18.5
|
M20 * 1.5
|
20
|
15
|
14.5
|
50
|
|
TLYBFC-KLL-M25A-18.5-ST
|
M25 * 1.5
|
25
|
12
|
14.6
|
50
|
|
AD21.2
|
TLYBFC-KLL-M20A-21.2-ST
|
M20 * 1.5
|
20
|
10
|
14.6
|
50
|
|
TLYBFC-KLL-M20A-21.2
|
M20 * 1.5
|
20
|
15
|
14.5
|
50
|
|
TLYBFC-KLL-M25A-21.2-ST
|
M25 * 1.5
|
25
|
10
|
19.1
|
50
|
|
TLYBFC-KLL-M25A-21.2
|
M25 * 1.5
|
25
|
15
|
19
|
50
|
|
TLYBFC-KLL-M32A-21.2-ST
|
M32 * 1.5
|
32
|
12
|
19.1
|
50
|
|
AD25.0
|
TLYBFC-KLL-M25A-25.0-ST
|
M25 * 1.5
|
25
|
10
|
19.2
|
50
|
|
TLYBFC-KLL-M25A-25.0
|
M25 * 1.5
|
25
|
15
|
19.2
|
50
|
|
AD28.5
|
TLYBFC-KLL-M25A-28.5-ST
|
M25 *1.5
|
25
|
10
|
19.2
|
50
|
|
TLYBFC-KLL-M25A-28.5
|
M25 *1.5
|
25
|
15
|
19.2
|
50
|
|
AD34.5
|
TLYBFC-KLL-M32A-34.5-ST
|
M32 *1.5
|
32
|
10
|
26.3
|
20
|
|
TLYBFC-KLL-M32A-34.5
|
M32 *1.5
|
32
|
15
|
26.3
|
20
|
|
AD42.5
|
TLYBFC-KLL-M40A-42.5
|
M40 *1.5
|
40
|
15
|
34.1
|
10
|
|
AD54.5
|
TLYBFC-KLL-M50A-54.5-ST
|
M50 *1.5
|
50
|
15
|
41.4
|
10
|
|
TLYBFC-KLL-M50A-54.5
|
M50 *1.5
|
50
|
22
|
41.4
|
10
|
|
TLYBFC-KLL-M63A-54.5
|
M63 *1.5
|
63
|
25
|
53.6
|
10
|
|
AD60.0
|
TLYBFC-KLL-50K-60.0
|
M50X1.5
|
50
|
22
|
41.4
|
10
|
|
AD60.0
|
TLYBFC-KLL-63K-60.0
|
M63X1.5
|
63
|
25
|
53.6
|
10
|
|
适配软管
|
产品型号
|
螺牙规格
|
螺纹外径
|
螺纹长度
|
幅体小通径
|
包装
|
|
AD10.0
|
TLYBFC-KLL-PG7A-10.0
|
PG7
|
12.5
|
8.5
|
8.5
|
50
|
|
TLYBFC-KLL-PG9A-10.0
|
PG9
|
15.2
|
9
|
8.3
|
50
|
|
AD13.0
|
TLYBFC-KLL-PG9A-13.0
|
PG9
|
15.2
|
10
|
10.4
|
50
|
|
TLYBFC-KLL-PG11A-13.0
|
PG11
|
18.6
|
10
|
11.2
|
50
|
|
AD15.8
|
TLYBFC-KLL-PG11A-15.8
|
PG11
|
18.6
|
10
|
13.7
|
50
|
|
TLYBFC-KLL-PG13.5A-15.8
|
PG13.5
|
20.4
|
10
|
15.1
|
50
|
|
TLYBFC-KLL-PG16A-15.8
|
PG16
|
22.5
|
10.8
|
14.6
|
50
|
|
AD18.5
|
TLYBFC-KLL-PG11A-18.5
|
PG11
|
18.6
|
10
|
13.7
|
50
|
|
TLYBFC-KLL-PG13.5A-18.5
|
PG13.5
|
20.4
|
10
|
15.1
|
50
|
|
TLYBFC-KLL-PG16A-18.5
|
PG16
|
22.5
|
10.8
|
14.6
|
50
|
|
AD21.2
|
TLYBFC-KLL-PG16A-21.2
|
PG16
|
22.5
|
10
|
16.1
|
50
|
|
TLYBFC-KLL-PG21A-21.2
|
PG21
|
28.3
|
12.5
|
18.7
|
50
|
|
AD28.5
|
TLYBFC-KLL-PG21A-28.5
|
PG21
|
28.3
|
12
|
23.2
|
50
|
|
AD34.5
|
TLYBFC-KLL-PG29A-34.5
|
PG29
|
37
|
12
|
28.1
|
20
|
|
AD42.5
|
TLYBFC-KLL-PG36A-42.5
|
PG36
|
47
|
13
|
37.3
|
10
|
|
AD54.5
|
TLYBFC-KLL-PG48A-54.5
|
PG48
|
59.3
|
16
|
51.8
|
10
|
|
AD60.0
|
TLYBFC-KLL-PG48K-60.0
|
PG48
|
59.3
|
16
|
51.8
|
10
|
|
适配软管
|
产品型号
|
螺牙规格
|
螺纹外径
|
螺纹长度
|
|
包装数量
|
|
AD10.0
|
TLYBFC-KLL-G1/4-10.0
|
G(PF)1/4
|
13.1
|
9
|
|
100
|
|
AD13.0
|
TLYBFC-KLL-G3/8-13.0
|
G(PF)3/8
|
16.6
|
15
|
|
100
|
|
AD15.8
|
TLYBFC-KLL-G1/2-15.8
|
G(PF)1/2
|
20.9
|
15
|
|
100
|
|
AD18.5
|
TLYBFC-KLL-G1/2-18.5
|
G(PF)1/2
|
20.9
|
15
|
|
100
|
|
AD21.2
|
TLYBFC-KLL-G1/2-21.2
|
G(PF)1/2
|
20.9
|
15
|
|
50
|
|
AD21.2
|
TLYBFC-KLL-G3/4-21.2
|
G(PF)3/4
|
26.4
|
15
|
|
50
|
|
AD25.0
|
TLYBFC-KLL-G1/2-25.0
|
G(PF)1/2
|
20.9
|
15
|
|
50
|
|
AD25.0
|
TLYBFC-KLL-G3/4-25.0
|
G(PF)3/4
|
26.4
|
15
|
|
50
|
|
AD26.2
|
TLYBFC-KLL-G1/2-26.2
|
G(PF)G1/2
|
20.9
|
15
|
|
50
|
|
AD26.2
|
TLYBFC-KLL-G3/4-26.2
|
G(PF)3/4
|
26.4
|
15
|
|
50
|
|
AD28.5
|
TLYBFC-KLL-G3/4-28.5
|
G(PF)3/4
|
26.4
|
15
|
|
20
|
|
AD34.5
|
TLYBFC-KLL-G1"-34.5
|
G(PF)1"
|
33.2
|
15
|
|
20
|
|
AD42.5
|
TLYBFC-KLL-G1 1/4-42.5
|
G(PF)1 1/4
|
41.9
|
15
|
|
10
|
|
AD54.5
|
TLYBFC-KLL-G1 1/2-54.5
|
G(PF)1 1/2
|
48
|
15
|
|
10
|
|
AD54.5
|
TLYBFC-KLL-G2"-54.5
|
G(PF)2"
|
60
|
15
|
|
10
|
|
AD60.0
|
TLYBFC-KLL-G1 1/2-60.0
|
G(PF)1 1/2
|
48
|
15
|
|
10
|
|
AD60.0
|
TLYBFC-KLL-G2"-60.0
|
G(PF)2"
|
60
|
15
|
|
10
|
