螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

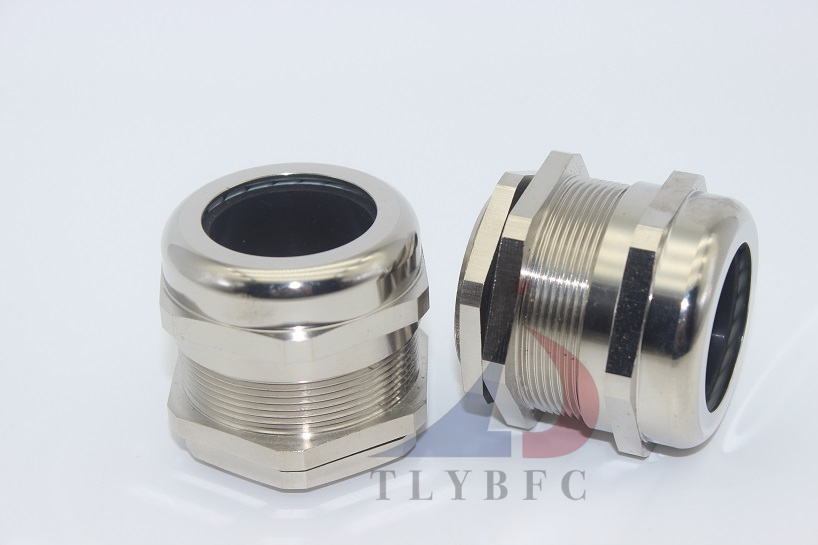

产品材质：A、C、F部分均采用黄铜镀镍制成，D部分采用白色尼龙制成。B、E部分采用丁晴橡胶（NBR）制成。
防火等级：D部分为UL94V-2,低烟无卤。
防护等级：在规定的卡口范围内，并使用O型密封圈旋紧迫紧头，达到IP68.
颜色种类：A、C、F部位为金属色。D为白色，B、E为黑色。
工作温度：静态：-40℃到100℃，短时间达120℃。动态：-20℃到80℃，短时间达100℃
产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利，夹紧电缆范 围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、酒精、油脂及一般溶剂。
使用方法：TLYBFC-M属格兰头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电机设备上
更多选择：可根据客户实际需要，特别定制。需要订购时来电咨询。
|
产品型号
|
螺牙规格
|
适应电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装数量
|
|
TLYBFZ-GD--M8
|
M8X1.5
|
2-4
|
8
|
6
|
13/14
|
100
|
|
TLYBFZ-GD--M8FZ
|
M8X1.5
|
2-4.9
|
8
|
6
|
14/14
|
100
|
|
TLYBFZ-GD-M10
|
M10X1.5
|
3-6.5
|
10
|
6
|
14/14
|
100
|
|
TLYBFZ-GD--M10FZ
|
M10X1.5
|
2.5-6.8
|
10
|
6
|
14/14
|
100
|
|
TLYBFZ-GD--M12
|
M12X1.5
|
3-6.5
|
12
|
6
|
14/14
|
100
|
|
TLYBFZ-GD--M12FZ
|
M12X1.5
|
3.5-8.0
|
12
|
6
|
17/18
|
100
|
|
TLYBFZ-GD--M14
|
M14X1.4
|
4-8
|
14
|
7
|
18/18
|
100
|
|
TLYBFZ-GD-M14FZ
|
M14X1.5
|
2.5-6.4
|
14
|
6
|
16/14
|
100
|
|
TLYBFZ-GD-M16
|
M16X1.5
|
4-8
|
16
|
7
|
18/18
|
100
|
|
TLYBFZ-GD-M16FZ
|
M16X1.5
|
5.0-10.0
|
16
|
7
|
18/20
|
100
|
|
TLYBFZ-GD--M18
|
M18X1.5
|
5-10
|
18
|
7.8
|
20/20
|
100
|
|
TLYBFZ-GD--M20
|
M20X1.5
|
6-12
|
20
|
8
|
23/22
|
100
|
|
TLYBFZ-GD--M20FZ
|
M20X1.5
|
3-8
|
20
|
8
|
23/18
|
100
|
|
TLYBFZ-GD-M20KT
|
M20X1.5
|
5-10
|
20
|
8
|
23/20
|
100
|
|
TLYBFZ-GD-M20WB
|
M20X1.5
|
9-13.8
|
20
|
8
|
23/24
|
100
|
|
TLYBFZ-GD--M22
|
M22X1.5
|
10-14
|
22
|
9
|
24/24
|
100
|
|
TLYBFZ-GD--M24
|
M24X1.5
|
10-14
|
24
|
9.5
|
27/24
|
100
|
|
TLYBFZ-GD-M25
|
M25X1.5
|
10-16
|
25
|
10
|
28/28
|
100
|
|
TLYBFZ-GD-M25FZ
|
M25X1.5
|
13-18
|
25
|
10
|
30/30
|
50
|
|
TLYBFZ-GD-M27
|
M27X1.5(2)
|
13-18
|
27
|
10.8
|
30/30
|
50
|
|
TLYBFZ-GD-M28
|
M28X1.5(2)
|
13-18
|
28
|
10.8
|
30/30
|
50
|
|
TLYBFZ-GD-M30
|
M30X1.5(2)
|
13-18
|
30
|
11
|
32/32
|
50
|
|
TLYBFZ-GD-M30FZ
|
M30X1.5(2)
|
8-12
|
30
|
11
|
32/32
|
50
|
|
TLYBFZ-GD-M30KT
|
M30X1.5(2)
|
14-20
|
30
|
11
|
32/32
|
25
|
|
TLYBFZ-GD--M32
|
M32X1.5(2)
|
15-22
|
32
|
11
|
36/35
|
25
|
|
TLYBFZ-GD--M33
|
M33X1.5(2)
|
15-22
|
33
|
11
|
36/36
|
25
|
|
TLYBFZ-GD--M36
|
M36X1.5(2)
|
18-25
|
36
|
12
|
40/40
|
25
|
|
TLYBFZ-GD--M37
|
M37X1.5(2)
|
18-25
|
37
|
12
|
40/40
|
10
|
|
TLYBFZ-GD-M40
|
M40X1.5(2)
|
18-25
|
40
|
12.5
|
42/42
|
10
|
|
TLYBFZ-GD--M40FZ
|
M40X1.5(2)
|
22-30
|
40
|
12.5
|
42/42
|
10
|
|
TLYBFZ-GD--M42
|
M42X1.5(2)
|
22-30
|
42
|
12.5
|
42/42
|
10
|
|
TLYBFZ-GD--M47
|
M47X1.5(2)
|
25-33
|
47
|
13
|
52/52
|
10
|
|
TLYBFZ-GD--M48
|
M48X1.5(2)
|
25-33
|
47.7
|
13
|
52/52
|
10
|
|
TLYBFZ-GD--M50
|
M50X1.5(2)
|
32-38
|
49.7
|
13
|
54/54
|
10
|
|
TLYBFZ-GD--M54
|
M54X1.5(2)
|
32-38
|
53.6
|
13.5
|
54/54
|
5
|
|
TLYBFZ-GD--M56
|
M56X1.5(2)
|
30-38
|
55.6
|
13.5
|
56/54
|
5
|
|
TLYBFZ-GD--M60
|
M60X1.5(2)
|
37-44
|
59.5
|
14
|
70/63
|
5
|
|
TLYBFZ-GD--M63
|
M63X1.5(2)
|
37-44
|
62.6
|
14
|
70/63
|
5
|
|
TLYBFZ-GD--M64
|
M64X1.5(2)
|
37-44
|
63.6
|
14.5
|
70/64
|
5
|
|
TLYBFZ-GD--M72
|
M72X1.5(2)
|
42-52
|
71.5
|
15.5
|
78/78
|
2
|
|
TLYBFZ-GD--M75
|
M75X1.5(2)
|
42-55
|
74.5
|
15.5
|
82/82
|
2
|
|
TLYBFZ-GD--M76
|
M76X1.5(2)
|
42-52
|
75.6
|
15.5
|
82/82
|
2
|
|
TLYBFZ-GD--M80
|
M80X1.5(2)
|
55-62
|
79.5
|
16.5
|
88/88
|
2
|
|
TLYBFZ-GD--M88
|
M88X1.5(2)
|
65-70
|
87.5
|
21
|
98/98
|
1
|
|
TLYBFZ-GD-M100
|
M100X1.5(2)
|
78-84
|
99.5
|
23
|
110/110
|
1
|
|
TLYBFZ-GD-M110
|
M110X1.5(2)
|
88-98
|
109.5
|
25
|
120/120
|
1
|
|
TLYBFZ-GD-M125
|
M125X1.5(2)
|
98-108
|
124.5
|
25
|
135/135
|
1
|
|
产品型号
|
螺牙规格
|
适应电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装数量
|
|
TLYBFZ-GD-PG07H-05
|
PG07
|
3-5.3
|
12.5
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-PG07HZ-08
|
PG07
|
4.5-8
|
12.5
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-PG07A-06
|
PG07
|
3-6
|
12.5
|
8
|
14/14
|
50
|
|
TLYBFZ-GD-PG09H-05
|
PG09
|
3-5.3
|
15.2
|
8
|
18/17
|
25
|
|
TLYBFZ-GD-PG09HZ-08
|
PG09
|
4.5-8
|
15.2
|
8
|
18/17
|
25
|
|
TLYBFZ-GD-PG11H-06
|
PG11
|
4-7
|
18.6
|
9
|
22/22
|
25
|
|
TLYBFZ-GD-PG11HZ-10
|
PG11
|
6-10
|
18.6
|
9
|
22/22
|
25
|
|
TLYBFZ-GD-PG13.5H-09
|
PG13.5
|
5-9
|
20.4
|
9.5
|
24/24
|
20
|
|
TLYBFZ-GD-PG13.5HZ-12
|
PG13.5
|
7-12
|
20.4
|
9.5
|
24/24
|
20
|
|
TLYBFZ-GD-PG16H-10
|
PG16
|
7-11
|
22.5
|
9.5
|
26/26
|
20
|
|
TLYBFZ-GD-PG16HZ-14
|
PG16
|
9-12.5
|
22.5
|
9.5
|
26/26
|
20
|
|
TLYBFZ-GD-PG21H-16
|
PG21
|
12-16
|
28.3
|
12
|
32/32
|
20
|
|
TLYBFZ-GD-PG21HZ-18
|
PG21
|
14-18
|
28.3
|
12
|
32/32
|
20
|
|
TLYBFZ-GD-PG29H-22
|
PG29
|
16-22
|
37
|
12.5
|
41/41
|
20
|
|
TLYBFZ-GD-PG29HZ-25
|
PG29
|
18-25
|
37
|
12.5
|
41/41
|
20
|
|
TLYBFZ-GD-PG36H-26
|
PG36
|
20-26
|
47
|
14
|
57/52
|
10
|
|
TLYBFZ-GD-PG36HZ-25
|
PG36
|
24-31
|
47
|
14
|
57/52
|
10
|
|
TLYBFZ-GD-PG42H-32
|
PG42
|
25-32
|
54
|
15
|
64/62
|
10
|
|
TLYBFZ-GD-PG42HZ-39
|
PG42
|
31-39
|
54
|
15
|
64/62
|
10
|
|
TLYBFZ-GD-PG48H-45
|
PG48
|
36-45
|
59.3
|
16
|
70/78
|
10
|
|
产品型号
|
螺牙规格
|
适应电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装数量
|
|
TLYBFZ-GD-G(PF)1/4H-05
|
G1/4
|
3-5.3
|
13.15
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-G(PF)1/4HZ-08
|
G1/4
|
4.5-7.8
|
13.15
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-G(PF)3/8H-06
|
G3/8
|
4-7
|
16.66
|
9
|
22/22
|
25
|
|
TLYBFZ-GD-G(PF)3/8HZ-10
|
G3/8
|
6-10
|
16.66
|
9
|
22/22
|
25
|
|
TLYBFZ-GD-G(PF)1/2H-08
|
G1/2
|
5.5-8
|
20.95
|
9.5
|
26/26
|
25
|
|
TLYBFZ-GD-G(PF)1/2HZ-12
|
G1/2
|
8.5-12
|
20.95
|
9.5
|
26/26
|
20
|
|
TLYBFZ-GD-G(PF)1/2A-14
|
G1/2
|
9-14
|
20.95
|
9.5
|
26/26
|
20
|
|
TLYBFZ-GD-G(PF)3/4H-16
|
G3/4
|
12-16
|
26.44
|
12
|
32/32
|
10
|
|
TLYBFZ-GD-G(PF)3/4HZ-18
|
G3/4
|
14-18
|
26.44
|
12
|
32/32
|
10
|
|
TLYBFZ-GD-G(PF)1H-22
|
G1"
|
16-22
|
33.24
|
12.5
|
41/41
|
10
|
|
TLYBFZ-GD-G(PF)1"HZ-25
|
G1"
|
18-25
|
33.24
|
12.5
|
41/41
|
10
|
|
产品型号
|
螺牙规格
|
适应电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装数量
|
|
TLYBFZ-GD-NPT1/4H-05
|
NPT1/4
|
3-5.3
|
13.15
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-NPT1/4HZ-08
|
NPT1/4
|
4.5-7.8
|
13.15
|
8
|
17/17
|
50
|
|
TLYBFZ-GD-NPT3/8H-06
|
NPT3/8
|
4-7
|
17.05
|
8
|
22
|
50
|
|
TLYBFZ-GD-NPT3/8HZ-10
|
NPT3/8
|
6-10
|
17.05
|
8
|
22
|
50
|
|
TLYBFZ-GD-NPT1/2H-08
|
NPT1/2
|
5.5-8
|
21.22
|
10
|
26
|
25
|
|
TLYBFZ-GD-NPT1/2HZ-12
|
NPT1/2
|
8.5-12
|
21.22
|
10
|
26
|
25
|
|
TLYBFZ-GD-NPT1/2A-14
|
NPT1/2
|
7-14
|
21.22
|
10
|
28
|
25
|
|
TLYBFZ-GD-NPT3/4H-16
|
NPT3/4
|
12-16
|
26.56
|
14
|
32
|
20
|
|
TLYBFZ-GD-NPT3/4HZ-18
|
NPT3/4
|
14-18
|
26.56
|
14
|
32
|
20
|
|
TLYBFZ-GD-NPT1"H-22
|
NPT1"
|
16-22
|
33.22
|
15
|
41
|
10
|
|
TLYBFZ-GD-NPT1"HZ-25
|
NPT1"
|
18-25
|
33.22
|
15
|
41
|
10
|
