螺牙规格 : 公制牙Ｍ、德制牙ＰＧ、英制牙Ｇ及美制牙NPT

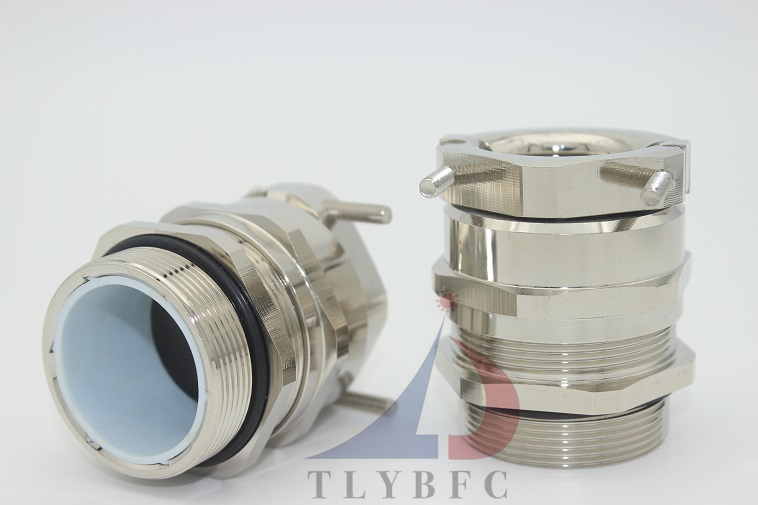

材质： 外部金属为黄铜镀镍；内部芯套为尼龙；密封件材料改性橡胶。
防护等级： 在规定的卡口范围内，防护等级可达到IP68。
认证： 通过ROHS。
工作温度： -40°C到+110°C，短时间可以达到+120°C

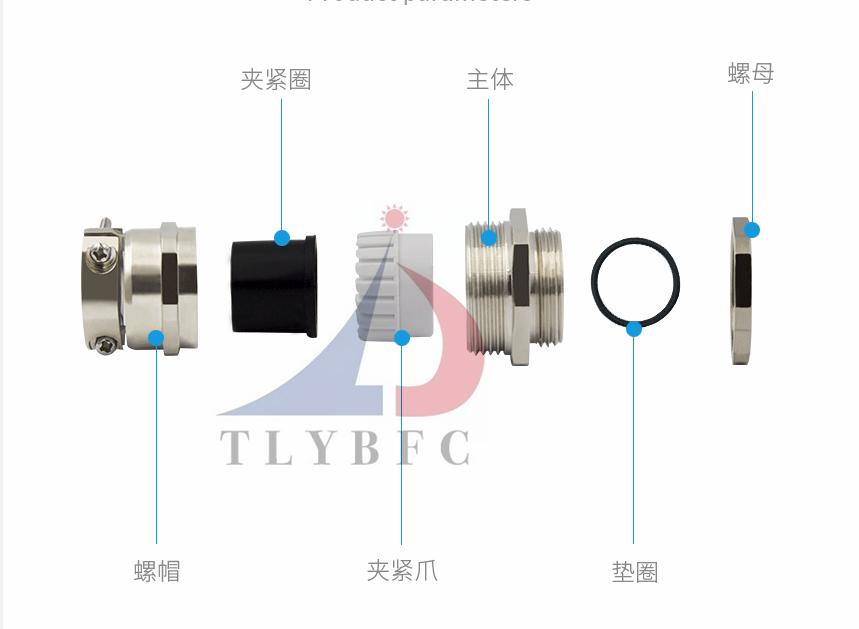

产品特性：特殊夹紧爪与密封件相扣之设计，配合迫紧头装配省时便利，夹紧电缆范围大，抗拉力特强，
可防水、防尘、防盐、耐酸碱、酒精、油、脂及一般溶剂。
|
产品型号
|
螺纹规格
|
电缆适应范围
|
螺纹长度 长螺纹
|
螺纹外径
|
高度
|
包装数量
|
|
TLYBFC-JSJ-M12
|
M12X1.5
|
3-6.5
|
5 10
|
12
|
25
|
100
|
|
TLYBFC-JSJ-M12
|
M12X1.5
|
4-8
|
6 10
|
12
|
27
|
100
|
|
TLYBFC-JSJ-M12
|
M12X1.5
|
6-8
|
6
|
12
|
22
|
100
|
|
TLYBFC-JSJ-M14
|
M14X1.5
|
4-8
|
6 10
|
14
|
27
|
100
|
|
TLYBFC-JSJ-M16
|
M16X1.5
|
4-8
|
6 10
|
16
|
27
|
100
|
|
TLYBFC-JSJ-M16
|
M16X1.5
|
5-10
|
6 10
|
16
|
29
|
100
|
|
TLYBFC-JSJ-M16
|
M16X1.5
|
8-10
|
6
|
16
|
25
|
100
|
|
TLYBFC-JSJ-M18
|
M18X1.5
|
5-10
|
6 10
|
18
|
29
|
100
|
|
TLYBFC-JSJ-M18
|
M18X1.5
|
10-12
|
6
|
18
|
26
|
100
|
|
TLYBFC-JSJ-M20
|
M20X1.5
|
6-12
|
6.5 10
|
20
|
31
|
100
|
|
TLYBFC-JSJ-M20
|
M20X1.5
|
10-14
|
6.5 10
|
20
|
31
|
100
|
|
TLYBFC-JSJ-M20
|
M20X1.5
|
10-12
|
6.5
|
20
|
26
|
100
|
|
TLYBFC-JSJ-M20
|
M20X1.5
|
12-14
|
6.5
|
20
|
27.5
|
100
|
|
TLYBFC-JSJ-M20
|
M20X1.5
|
14-16
|
6.5
|
20
|
28.5
|
100
|
|
TLYBFC-JSJ-M22
|
M22X1.5
|
10-14
|
6.5 10
|
22
|
31
|
100
|
|
TLYBFC-JSJ-M24
|
M24X1.5
|
10-14
|
6.5 10
|
24
|
31
|
100
|
|
TLYBFC-JSJ-M25
|
M25X1.5
|
13-18
|
7 12
|
25
|
37
|
100
|
|
TLYBFC-JSJ-M25
|
M25X1.5
|
17-19
|
7
|
25
|
33
|
100
|
|
TLYBFC-JSJ-M27
|
M27X1.5
|
13-18
|
7 12
|
27
|
37
|
100
|
|
TLYBFC-JSJ-M28
|
M28X1.5
|
13-18
|
7 12
|
28
|
37
|
100
|
|
TLYBFC-JSJ-M30
|
M30X1.5
|
13-18
|
8 12
|
30
|
37
|
50
|
|
TLYBFC-JSJ-M32
|
M32X1.5
|
18-25
|
8 12
|
32
|
42
|
50
|
|
TLYBFC-JSJ-M32
|
M32X1.5
|
26-28
|
8
|
32
|
36
|
50
|
|
TLYBFC-JSJ-M33
|
M33X1.5
|
18-25
|
8 12
|
33
|
42
|
50
|
|
TLYBFC-JSJ-M36
|
M36X1.5
|
18-25
|
8 12
|
36
|
42
|
50
|
|
TLYBFC-JSJ-M37
|
M37X1.5
|
18-25
|
8 12
|
37
|
42
|
50
|
|
TLYBFC-JSJ-M40
|
M40X1.5
|
22-32
|
8 15
|
40
|
48
|
50
|
|
TLYBFC-JSJ-M40
|
M40X1.5
|
33-35
|
9
|
40
|
41
|
50
|
|
TLYBFC-JSJ-M42
|
M42X1.5
|
22-32
|
8 15
|
42
|
48
|
50
|
|
TLYBFC-JSJ-M47
|
M47X1.5
|
22-32
|
8 15
|
47
|
48
|
50
|
|
TLYBFC-JSJ-M48
|
M48X1.5
|
22-32
|
8 15
|
48
|
48
|
50
|
|
TLYBFC-JSJ-M50
|
M50X1.5
|
32-38
|
9 15
|
50
|
50
|
50
|
|
TLYBFC-JSJ-M50
|
M50X1.5
|
39-41
|
10
|
50
|
41
|
25
|
|
TLYBFC-JSJ-M54
|
M54X1.5
|
32-38
|
9 15
|
54
|
50
|
25
|
|
TLYBFC-JSJ-M56
|
M56X1.5
|
32-38
|
9 15
|
56
|
50
|
25
|
|
TLYBFC-JSJ-M60
|
M60X1.5
|
37-44
|
10 15
|
60
|
51
|
25
|
|
TLYBFC-JSJ-M63
|
M63X1.5
|
37-44
|
10 15
|
63
|
51
|
10
|
|
TLYBFC-JSJ-M63
|
M63X1.5
|
43-45
|
10
|
63
|
48
|
10
|
|
TLYBFC-JSJ-M64
|
M64X1.5
|
37-44
|
10 15
|
64
|
51
|
10
|
|
产品型号
|
螺纹规格
|
电缆适应范围
|
螺纹长度
|
螺纹外径
|
高度
|
包装数量
|
|
TLYBFC-JSJ-PG07
|
PG07
|
3-6.5
|
5
|
12.5
|
25
|
100
|
|
TLYBFC-JSJ-PG09
|
PG09
|
4-8
|
6
|
15.2
|
27
|
100
|
|
TLYBFC-JSJ-PG11
|
PG11
|
5-10
|
6
|
18.6
|
29
|
100
|
|
TLYBFC-JSJ-PG13.5
|
PG13.5
|
6-12
|
6.5
|
20.4
|
31
|
100
|
|
TLYBFC-JSJ-PG16
|
PG16
|
10-14
|
6.5
|
22.5
|
31
|
100
|
|
TLYBFC-JSJ-PG21
|
PG21
|
13-18
|
7
|
28.3
|
37
|
50
|
|
TLYBFC-JSJ-PG29
|
PG29
|
18-25
|
8
|
37
|
42
|
50
|
|
TLYBFC-JSJ-PG36
|
PG36
|
22-32
|
8
|
47
|
48
|
25
|
|
TLYBFC-JSJ-PG42
|
PG42
|
32-38
|
9
|
54
|
50
|
25
|
|
TLYBFC-JSJ-PG48
|
PG48
|
37-44
|
10
|
59.3
|
51
|
10
|
|
|
|
|
|
|
|
|
|
TLYBFC-JSJ-NPT1/4
|
NPT1 /4
|
3-6.5
|
8
|
13.7
|
25
|
100
|
|
TLYBFC-JSJ-NPT1/4
|
NPT1/4
|
4-8
|
8
|
13.7
|
27
|
100
|
|
TLYBFC-JSJ-NPT3/8
|
NPT3/8
|
4-8
|
15
|
17
|
27
|
100
|
|
TLYBFC-JSJ-NPT3/8
|
NPT3/8
|
5-10
|
15
|
17
|
29
|
100
|
|
TLYBFC-JSJ-NPT1/2
|
NPT1/2
|
6-12
|
13
|
21.2
|
31
|
100
|
|
TLYBFC-JSJ-NPT1/2
|
NPT1/2
|
10-14
|
13
|
21.2
|
31
|
100
|
|
TLYBFC-JSJ-NPT3/4
|
NPT3/4
|
13-18
|
15
|
26.6
|
37
|
100
|
|
TLYBFC-JSJ-NPT1"
|
NPT1"
|
18-25
|
16
|
33.3
|
42
|
25
|
|
TLYBFC-JSJ-NPT1 1/4
|
NPT1 1/4
|
18-25
|
18
|
42
|
42
|
25
|
|
TLYBFC-JSJ-NPT1 1/4
|
NPT1 1/4
|
22-32
|
18
|
42
|
48
|
25
|
|
TLYBFC-JSJ-NPT1 1/2
|
NPT1 1/2
|
22-32
|
18
|
48
|
48
|
25
|
|
TLYBFC-JSJ-NPT1 1/2
|
NPT1 1/2
|
32-38
|
18
|
48
|
50
|
10
|
|
TLYBFC-JSJ-NPT2"
|
NPT2"
|
37-44
|
18
|
60
|
51
|
10
|
|
|
|
|
|
|
|
|
|
TLYBFC-JSJ-G1/4
|
G1/4
|
3-6.5
|
7
|
13.1
|
25
|
100
|
|
TLYBFC-JSJ-G1/4
|
G1/4
|
4-8
|
7
|
13.1
|
27
|
100
|
|
TLYBFC-JSJ-G3/8
|
G3/8
|
4-8
|
8
|
16.6
|
27
|
100
|
|
TLYBFC-JSJ-G3/8
|
G3/8
|
5-10
|
8
|
16.6
|
29
|
100
|
|
TLYBFC-JSJ-G1/2
|
G1/2
|
6-12
|
8
|
20.9
|
31
|
100
|
|
TLYBFC-JSJ-G1/2
|
G1/2
|
10-14
|
8
|
20.9
|
31
|
100
|
|
TLYBFC-JSJ-G3/4
|
G3/4
|
13-18
|
8
|
26.4
|
37
|
50
|
|
TLYBFC-JSJ-G1
|
G1"
|
18-25
|
10
|
33.2
|
42
|
50
|
|
TLYBFC-JSJ-G1 1/4
|
G1 1/4
|
18-25
|
10
|
41.9
|
42
|
25
|
|
TLYBFC-JSJ-G1 1/4
|
G1 1/4
|
22-32
|
10
|
41.9
|
48
|
25
|
|
TLYBFC-JSJ-G1 1/2
|
G1 1/2
|
22-32
|
10
|
47.8
|
48
|
25
|
|
TLYBFC-JSJ-G1 1/2
|
G1 1/2
|
32-38
|
10
|
47.8
|
50
|
10
|
|
TLYBFC-JSJ-G2
|
G2"
|
37-44
|
12
|
59.6
|
51
|
10
|
