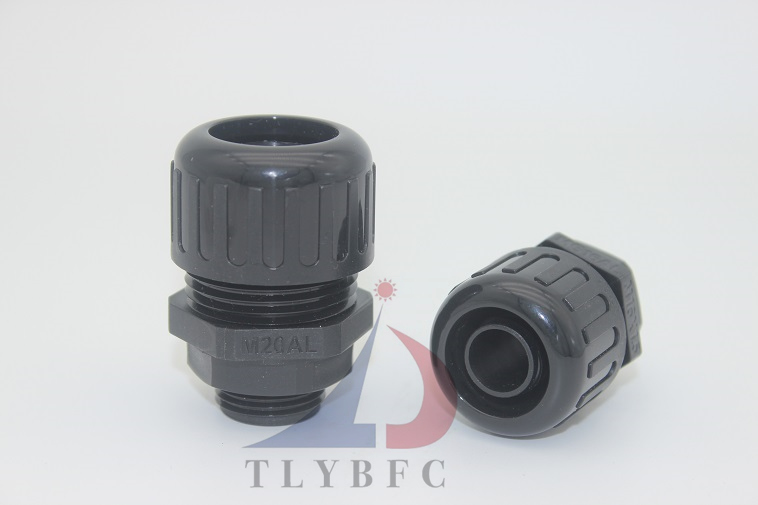

材质：尼龙66
密封件材料：UL认可尼龙PA66制成（防火等级UL94V-2）
颜色：黑色B、灰白色G
温度:-40-100°C，短时间：120°C
特性:1.防电缆损伤，外形美观，结构紧密，强度高。
2.与浪管或金属软管配合紧密，安装简便，抗拉脱力强。
3.适应范围：广泛适用于机床，石油，化工设备，自动化设备，通讯系统，铁路，船舶等工作环境温度高的电气配线系统。
备注：接受非标、定制,欢迎来电咨询!
|
产品型号
|
适配软管
|
螺纹规格
|
螺纹外径
|
螺纹长度
|
包装单位
|
|
TLYBFC-BS-M16-AD15.8-FZ
|
5/16 AD15.8
|
M16X1.5
|
16
|
10
|
50
|
|
TLYBFC-BS-M16-AD15.8
|
5/16 AD15.8
|
M16X1.5
|
16
|
15
|
50
|
|
TLYBFC-BS-M16-AD15.8-FZ
|
3/8 AD15.8
|
M16X1.5
|
16
|
10
|
50
|
|
TLYBFC-BS-M16-AD15.8
|
3/8 AD15.8
|
M16X1.5
|
16
|
15
|
50
|
|
TLYBFC-BS-M20-AD21.2-FZ
|
1/2 AD21.2
|
M20X1.5
|
20
|
10
|
50
|
|
TLYBFC-BS-M20-AD21.2
|
1/2 AD21.2
|
M20X1.5
|
20
|
15
|
50
|
|
TLYBFC-BS-M25-AD21.2-FZ
|
3/4 AD21.2
|
M25X1.5
|
25
|
10
|
50
|
|
TLYBFC-BS-M25-AD21.2
|
3/4 AD21.2
|
M25X1.5
|
25
|
15
|
20
|
|
TLYBFC-BS-M32-AD34.5-FZ
|
1" AD34.5
|
M32X1.5
|
32
|
10
|
20
|
|
TLYBFC-BS-M32-AD34.5
|
1" AD34.5
|
M32X1.5
|
32
|
15
|
20
|
|
TLYBFC-BS-M40-AD42.5
|
1 1/4 AD42.5
|
M40X1.5
|
40
|
15
|
10
|
|
TLYBFC-BS-M50-AD48
|
1 1/2 AD48
|
M50X1.5
|
50
|
15
|
10
|
|
TLYBFC-BS-M63-AD54.5
|
2" AD54.5
|
M63X1.5
|
63
|
25
|
10
|
|
|
|
|
|
|
|
|
TLYBFC-BS-PG16-AD15.8-FZ
|
5/16 AD15.8
|
PG16
|
22.5
|
10.8
|
50
|
|
TLYBFC-BS-PG16-AD15.8
|
3/8 AD15.8
|
PG16
|
22.5
|
10.8
|
50
|
|
TLYBFC-BS-PG16-AD21.2
|
1/2 AD21.2
|
PG16
|
22.5
|
13
|
50
|
|
TLYBFC-BS-PG21-AD28.5
|
3/4 AD28.5
|
PG21
|
28.3
|
13
|
50
|
|
TLYBFC-BS-PG29-AD34.5
|
1" AD34.5
|
PG29
|
37
|
13
|
50
|
|
|
|
|
|
|
|
|
TLYBFC-BS-PF1/2-AD15.8
|
5/16 AD15.8
|
PF1/2
|
20.9
|
15
|
50
|
|
TLYBFC-BS-PF1/2-AD18.5
|
3/8 AD18.5
|
PF1/2
|
20.9
|
15
|
50
|
|
TLYBFC-BS-PF1/2-AD21.2
|
1/2 AD21.2
|
PF1/2
|
20.9
|
15
|
50
|
|
TLYBFC-BS-PF3/4-AD28.5
|
3/4 AD28.5
|
PF3/4
|
26.4
|
15
|
20
|
|
TLYBFC-BS-PF1"-AD34.5
|
1" AD34.5
|
PF1"
|
33.2
|
15
|
20
|
|
TLYBFC-BS-PF1 1/4-AD42.5
|
1 1/4 AD42.5
|
PF1 1/4
|
41.9
|
15
|
10
|
|
TLYBFC-BS-PF1 1/2-AD48
|
1 1/2 AD48
|
PF1 1/2
|
48
|
15
|
10
|
|
TLYBFC-BS-PF2"-AD54.5
|
2” AD54.5
|
PF2"
|
60
|
15
|
10
|
|
产品型号
|
螺牙标准
|
配套金属软管
|
螺纹外径
|
螺纹长度
|
包装
|
|
英制软管
|
公制软管
|
公制
|
Thread
|
Thread
|
Packing
|
|
Item NO.
|
Thread
|
G
|
M
|
0.D. D1
|
Length L1
|
Pcs
|
|
M16-ø8-ST
|
M16 x 1.5
|
5/16”管
|
ø8
|
|
16
|
10
|
50
|
|
M16-ø8
|
|
16
|
15
|
50
|
|
M16-ø12-ST
|
M16 x 1.5
|
3/8”管
|
ø12(13)
|
|
16
|
10
|
50
|
|
M16-ø12
|
|
16
|
15
|
50
|
|
M20-ø15-ST
|
M20*1.5
|
1/2”管
|
ø15(16)
|
|
20
|
10
|
50
|
|
M20-ø15
|
|
20
|
15
|
50
|
|
M25-ø19-ST
|
M25*1.5
|
3/4”管
|
ø19(20)
|
|
25
|
10
|
50
|
|
M25-ø19
|
|
25
|
15
|
50
|
|
M32-ø25-ST
|
M32*1.5
|
1”管
|
ø25
|
|
32
|
10
|
20
|
|
M32-ø25
|
|
32
|
15
|
20
|
|
M40-ø32
|
M40*1.5
|
1 1/4”管
|
ø32
|
|
40
|
15
|
10
|
|
M50-ø38
|
M50*1.5
|
1 1/2”管
|
ø38(40)
|
|
50
|
15
|
10
|
|
M63-ø50
|
M63*1.5
|
2”管
|
ø50(51)
|
|
63
|
15
|
10
|
|
产品型号
|
螺牙标准
|
配套金属软管
|
螺纹外径
|
螺纹长度
|
包装
|
|
英制软管
|
公制软管
|
公制
|
Thread
|
Thread
|
Packing
|
|
Item NO.
|
Thread
|
G
|
M
|
0.D. D1
|
Length L1
|
Pcs
|
|
PG16-ø8
|
PG16
|
5/16”管
|
ø8
|
|
22.5
|
10.8
|
50
|
|
PG16-ø12
|
PG16
|
3/8”管
|
ø12(13)
|
|
22.5
|
10.8
|
50
|
|
PG16-ø15
|
PG16
|
1/2”管
|
ø15(16)
|
|
22.5
|
13
|
50
|
|
PG21-ø19
|
PG21
|
3/4”管
|
ø19(20)
|
|
28.3
|
13
|
50
|
|
PG29-ø25
|
PG29
|
1”管
|
ø25
|
|
37
|
13
|
20
|
|
产品型号
|
螺牙标准
|
配套金属软管
|
螺纹外径
|
螺纹长度
|
包装
|
|
英制软管
|
公制软管
|
公制
|
Thread
|
Thread
|
Packing
|
|
Item NO.
|
Thread
|
G
|
M
|
0.D. D1
|
Length L1
|
Pcs
|
|
G1/2-ø8
|
G1/2
|
5/16”管
|
ø8
|
|
20.9
|
15
|
50
|
|
G1/2-ø12
|
G1/2
|
3/8”管
|
ø12(13)
|
|
20.9
|
15
|
50
|
|
G/2-ø15
|
G1/2
|
1/2”管
|
ø15(16)
|
|
20.9
|
15
|
50
|
|
G3/4-ø19
|
G3/4
|
3/4”管
|
ø19(20)
|
|
26.4
|
15
|
50
|
|
G1-ø25
|
G1"
|
1”管
|
ø25
|
|
33.2
|
15
|
20
|
|
G1-1/4-ø32
|
G1-1/4"
|
1 1/4”管
|
ø32
|
|
41.9
|
15
|
10
|
|
G1-1/2-ø38
|
G1-1/2"
|
1 1/2”管
|
ø38(40)
|
|
48
|
15
|
10
|
|
G2"-ø50
|
G2"
|
2”管
|
ø50(51)
|
|
60
|
15
|
10
|
