螺牙规格 ：公制牙ＭG牙规，德制PG牙，美制NPT锥螺纹，英制G(PF)管螺纹

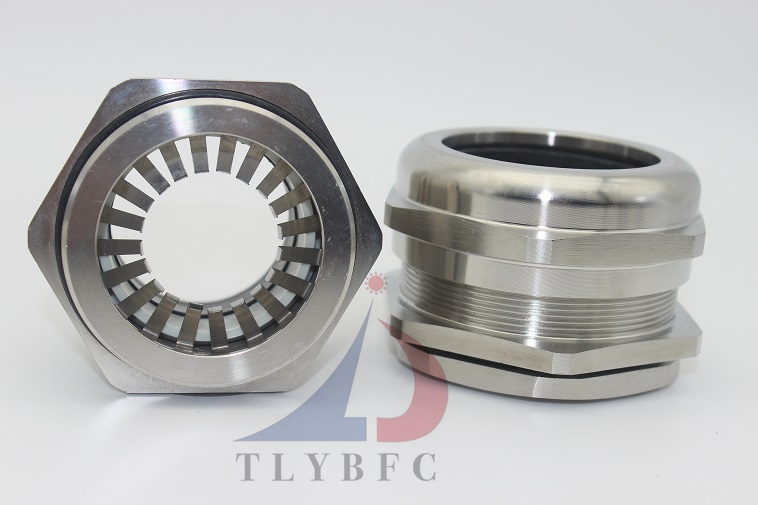

產品說明 ：采用304不锈钢材质精制而成，具有独特的防爆功能，另可在隔离线电缆时,降低电磁波干扰,特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-5Bar
工作温度 ：-40℃~＋100℃短时可达＋120℃

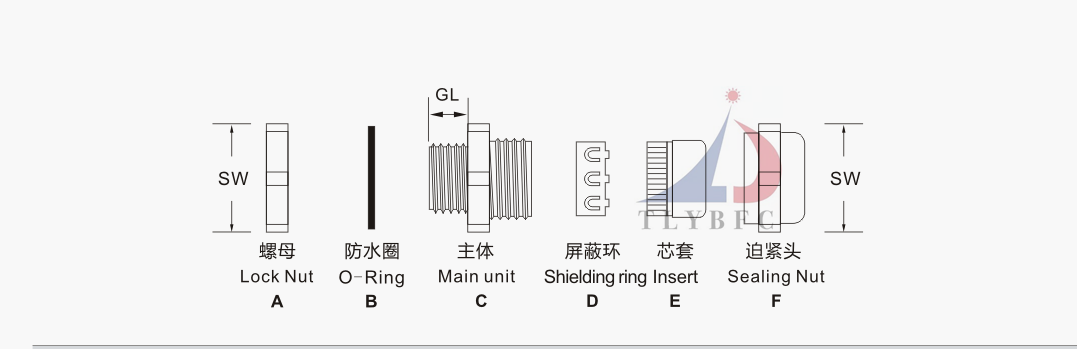

产品材質 ：A.C.F 部份以不锈钢制成，E 部份以 UL 认可之尼龙 PA66 制成 ( 防火等级UL 94V-2 )，B 及 D 部份采用EPDM耐候橡胶制成。
安装方法：TLYBFC品牌接头将屏蔽电缆的外护层破除一小段，并将屏蔽层截断， 将一小段屏蔽层导体反包在接头的内芯套外部，长度应长于密封圈位置，然后用力放置入电缆接头，出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹，接入进出口为内螺纹的电动设备上。
产品颜色 ：不锈钢本色
备注：接受非标、定制316不锈钢,欢迎来电咨询!
|
夹紧爪
|
螺牙规格
|
订货号
|
电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包 装
|
|
mm
|
C1 mm
|
C2 mm
|
A & F mm
|
pcs
|
|
MG
|
|
M12*1.5
|
TLYBFC-EMC-M12A-08-SS
|
4.5 ~ 7.8
|
12
|
8
|
18/19
|
50
|
|
TLYBFC-EMC-M12A-05-SS
|
3 ~ 5.3
|
12
|
8
|
18/19
|
50
|
|
M16*1.5
|
TLYBFC-EMC-M16A-10-SS
|
6 ~ 10
|
16
|
15
|
22/22
|
50
|
|
TLYBFC-EMC-M16A-06-SS
|
4 ~ 7
|
16
|
15
|
22/22
|
50
|
|
TLYBFC-EMC-M16AS-08-SS
|
6 ~ 10
|
16
|
10
|
22/20
|
50
|
|
M20*1.5
|
TLYBFC-EMC-M20A-14-SS
|
7 ~ 14
|
20
|
15
|
25/25
|
50
|
|
TLYBFC-EMC-M20A-10-SS
|
7 ~ 11
|
20
|
15
|
25/25
|
50
|
|
TLYBFC-EMC-M20AS-12-SS
|
7 ~ 12
|
20
|
15
|
25/22
|
50
|
|
M22*1.5
|
TLYBFC-EMC-M22A-14-SS
|
7 ~ 14
|
22
|
15
|
25/25
|
50
|
|
TLYBFC-EMC-M22A-10-SS
|
7 ~ 11
|
22
|
15
|
25/25
|
50
|
|
M25*1.5
|
TLYBFC-EMC-M25A-18-SS
|
13 ~ 18
|
25
|
15
|
33/33
|
50
|
|
TLYBFC-EMC-M25A-16-SS
|
10 ~ 16
|
25
|
15
|
33/33
|
50
|
|
|
|
PG
|
|
PG 7
|
TLYBFC-EMC-PG7A-05-SS
|
3--5.3
|
12.5
|
8
|
17 / 17
|
20
|
|
TLYBFC-EMC-PG7A-08-SS
|
4.5--8
|
12.5
|
8
|
17 / 17
|
20
|
|
TLYBFC-EMC-PG7AS-06-SS
|
3--6
|
12.5
|
8
|
14 / 14
|
20
|
|
PG 9
|
TLYBFC-EMC-PG9A-05-SS
|
3--5.3
|
15.2
|
8
|
18 / 17
|
20
|
|
TLYBFC-EMC-PG9A-08-SS
|
4.5--8
|
15.2
|
8
|
18 / 17
|
20
|
|
PG 11
|
TLYBFC-EMC-PG11A-06-SS
|
4--7
|
18.6
|
9
|
22 / 22
|
10
|
|
TLYBFC-EMC-PG11A-10-SS
|
6--10
|
18.6
|
9
|
22 / 22
|
10
|
|
PG 13.5
|
TLYBFC-EMC-PG13.5A-08-SS
|
5--9
|
20.4
|
9.5
|
24 / 24
|
10
|
|
TLYBFC-EMC-PG13.5A-12-SS
|
7--12
|
20.4
|
9.5
|
24 / 24
|
10
|
|
PG 16
|
TLYBFC-EMC-PG16A-10-SS
|
7--11
|
22.5
|
9.5
|
26 / 26
|
10
|
|
TLYBFC-EMC-PG16A-14-SS
|
9--12.5
|
22.5
|
9.5
|
26 / 26
|
10
|
|
PG 21
|
TLYBFC-EMC-PG21A-16-SS
|
12--16
|
28.3
|
12
|
32 / 32
|
10
|
|
TLYBFC-EMC-PG21A-18-SS
|
14--18
|
28.3
|
12
|
32 / 32
|
10
|
|
|
|
G(PF)
|
|
G(PF) 3/8
|
TLYBFC-EMC-G3/8A-06-SS
|
7 ~ 4
|
16.66
|
9
|
22 / 22
|
10
|
|
TLYBFC-EMC-G3/8A-10-SS
|
10 ~ 6
|
16.66
|
9
|
22 / 22
|
10
|
|
G(PF) 1/2
|
TLYBFC-EMC-G1/2A-08-SS
|
8 ~ 5.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
TLYBFC-EMC-G1/2A-12-SS
|
12 ~ 8.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
TLYBFC-EMC-G1/2A-14-SS
|
14 ~ 9.0
|
20.95
|
9.5
|
26 / 28
|
10
|
|
G(PF) 3/4
|
TLYBFC-EMC-G3/4A-16-SS
|
16 ~ 12
|
26.44
|
12
|
32 / 32
|
10
|
|
TLYBFC-EMC-G3/4A-18-SS
|
18 ~ 14
|
26.44
|
12
|
32 / 32
|
10
|
|
|
|
NPT
|
|
NPT3/8
|
TLYBFC-EMC-NPT3/8A-06-SS
|
7~4
|
17.05
|
8
|
22
|
50
|
|
TLYBFC-EMC-NPT3/8A-10-SS
|
10~6
|
17.05
|
8
|
22
|
50
|
|
NPT1/2
|
TLYBFC-EMC-NPT1/2A-08-SS
|
8~5.5
|
21.22
|
10
|
26
|
50
|
|
TLYBFC-EMC-NPT1/2A-12-SS
|
12~8.5
|
21.22
|
10
|
26
|
50
|
|
TLYBFC-EMC-NPT1/2A-14-SS
|
14~7.0
|
21.22
|
10
|
28
|
50
|
|
NPT3/4
|
TLYBFC-EMC-NPT3/4A-16-SS
|
16~12
|
26.56
|
14
|
32
|
50
|
|
TLYBFC-EMC-NPT3/4A-18-SS
|
18~14
|
26.56
|
14
|
32
|
50
|
