产品材质：接头主体部位采用黄铜镀镍或不锈钢304制成，密封件和O型密封圈均采用高温硅胶制成。
防护等级：在规定的卡口范围内，并使用O型密封圈旋紧迫紧头，达到IP68-10巴压力。
工作温度：-40℃到200℃常时
螺纹长度： 短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。

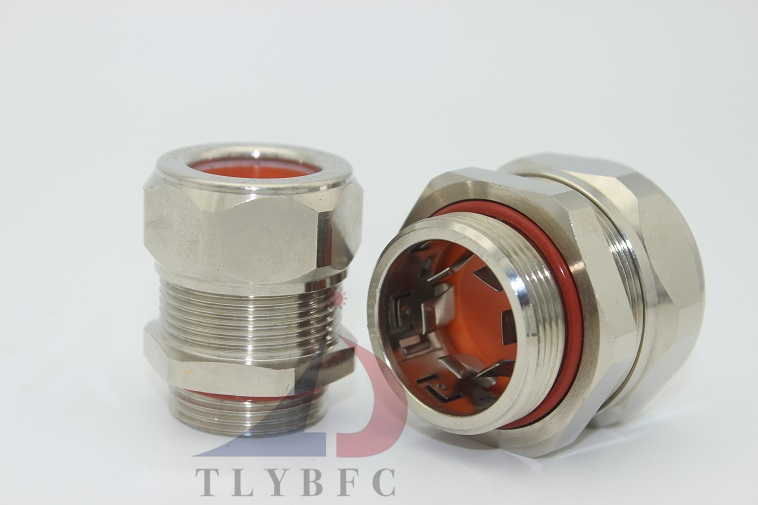

产品特性：本产品经特殊设计，将金属电缆固定头当作是一个端体，当隔离线电缆进入本固定头时，可利用固定头内
所附加的铜制接触片来与电缆线内的金属隔离编制网作接触，进而引导干扰的电磁波到接地线上，使电磁波干扰源得
以疏散。本款铜制电缆固定头全方位尺寸能充分地被应用到所有需防磁波的出线领域上，并且扎实的提供防水IP68与
固定抗拉的效果。
如需特殊尺寸产品，请随时联系我司。我们将竭诚为您服务。
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
穿线方式
|
包装数量
|
|
TLYBFZ-EMV.SC-M12
|
M12X1.5
|
3-6.5
|
12
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFZ-EMV.SC1-M12
|
M12X1.5
|
4-8
|
12
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFZ-EMV.SC-M16
|
M16X1.5
|
4-8
|
16
|
7
|
21
|
17/18
|
A/B
|
75
|
|
TLYBFZ-EMV.SC1-M16
|
M16X1.5
|
5-10
|
16
|
7
|
24
|
22
|
A
|
32
|
|
TLYBFZ-EMV.SC-M20
|
M20X1.5
|
7-12
|
20
|
7
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFZ-EMV.SC1-M20
|
M20X1.5
|
9-14
|
20
|
7
|
27
|
26
|
A
|
32
|
|
TLYBFZ-EMV.SC-M25
|
M25X1.5
|
11-16
|
25
|
7
|
24.5
|
28
|
A/B
|
18
|
|
TLYBFZ-EMV.SC1-M25
|
M25X1.5
|
13-18
|
25
|
7
|
28.5
|
30
|
A
|
18
|
|
TLYBFZ-EMV.SC-M32
|
M32X1.5
|
15-21
|
32
|
8
|
28
|
36
|
A/B
|
8
|
|
TLYBFZ-EMV.SC1-M32
|
M32X1.5
|
17-24
|
32
|
8
|
33
|
38
|
A
|
8
|
|
TLYBFZ-EMV.SC-M40
|
M40X1.5
|
21-30
|
40
|
9
|
38
|
45
|
A/B
|
8
|
|
TLYBFZ-EMV.SC1-M40
|
M40X1.5
|
22-32
|
40
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFZ-EMV.SC-M50
|
M50X1.5
|
30-38
|
50
|
9
|
40
|
55/58
|
A/B
|
2
|
|
TLYBFZ-EMV.SC1-M50
|
M50X1.5
|
30-40
|
50
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFZ-EMV.SC-M63
|
M63X1.5
|
37-44
|
63
|
10
|
41.5
|
65/70
|
A/B
|
2
|
|
TLYBFZ-EMV.SC1-M3
|
M63X1.5
|
38-53
|
63
|
10
|
48
|
75
|
A
|
2
|
PG德制牙
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
穿线方式
|
包装数量
|
|
TLYBFZ-EMV.SC-PG07
|
PG07
|
3-6.5
|
12.5
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFZ-EMV.SC1-PG07
|
PG07
|
4-8
|
12.5
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFZ-EMV.SC-PG09
|
PG09
|
4-8
|
15.2
|
10
|
21
|
17
|
A/B
|
75
|
|
TLYBFZ-EMV.SC1-PG09
|
PG09
|
5-10
|
15.2
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFZ-EMV.SC-PG11
|
PG11
|
4-8
|
18.6
|
10
|
21
|
17/20
|
A/B
|
32
|
|
TLYBFZ-EMV.SC1-PG11
|
PG11
|
5-10
|
18.6
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFZ-EMV.SC-PG13.5
|
PG13.5
|
7-12
|
20.4
|
10
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFZ-EMV.SC1-PG13.5
|
PG13.5
|
9-14
|
20.4
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFZ-EMV.SC-PG16
|
PG16
|
7-12
|
22.5
|
10
|
23.5
|
22/24
|
A/B
|
32
|
|
TLYBFZ-EMV.SC1-PG16
|
PG16
|
9-14
|
22.5
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFZ-EMV.SC-PG21
|
PG21
|
11-16
|
28.3
|
10
|
24.5
|
28/30
|
A/B
|
18
|
|
TLYBFZ-EMV.SC1-PG21
|
PG21
|
13-18
|
28.3
|
10
|
28.5
|
30
|
A
|
18
|
|
TLYBFZ-EMV.SC-PG29
|
PG29
|
15-21
|
37
|
8
|
28
|
36/40
|
A/B
|
8
|
|
TLYBFZ-EMV.SC1-PG29
|
PG29
|
17-24
|
37
|
8
|
33
|
38/40
|
A
|
8
|
|
TLYBFZ-EMV.SC-PG36
|
PG36
|
21-30
|
47
|
9
|
38
|
45/50
|
A/B
|
4
|
|
TLYB-FZEMV.SC1-PG36
|
PG36
|
22-32
|
47
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFZ-EMV.SC-PG42
|
PG42
|
30-38
|
54
|
9
|
40
|
58
|
A/B
|
2
|
|
TLYBFZ-EMV.SC1-PG42
|
PG42
|
30-40
|
54
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFZ-EMV.SC-PG48
|
PG48
|
37-44
|
59.3
|
10
|
41.5
|
65
|
A/B
|
2
|
|
TLYBFZ-EMV.SC1-PG48
|
PG48
|
38-53
|
59.3
|
10
|
48
|
75
|
A
|
2
|
